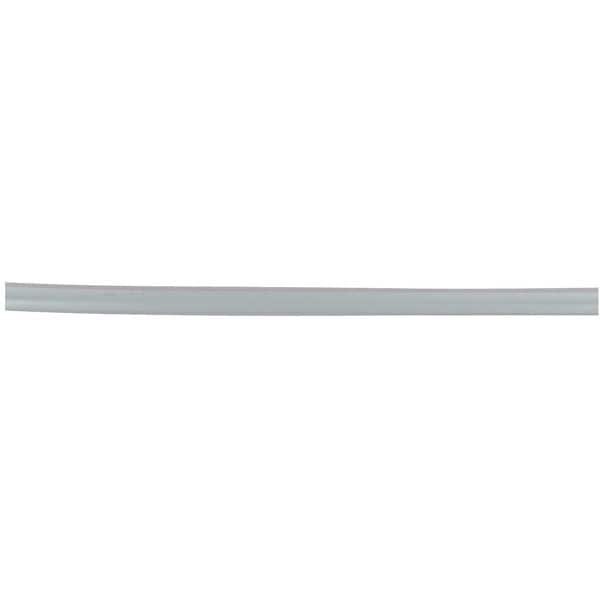

Air Brake Tubing, 1/2 In. OD, Silver

  • Mfr # 1120-8B-SIL-500

  • Zoro # G3519381


product price: $887.99
/ea
Free Shipping & Returns

Key Features

Length
500 ft
Outside Dia.
1/2 in
Material
Nylon
Type
Type B - Reinforced
Color
Silver
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1120-8B-SIL-500
Zoro #
G3519381
UPC #
-
Country of Origin
United States

Dimensions

Length
500 ft
Outside Dia.
1/2 in
Tube Size
0.5 in
Bend Radius
2 in
Wall Thickness
0.062 in
Outside Diameter
1/2 in

Details

Item
Tubing
Material
Nylon
Type
Type B - Reinforced
Color
Silver
Standards
DOT FMVSS106, SAE J1131, SAE J844
Temp. Range
-40 Degrees to 200 Degrees F
Max. Working Pressure
150 psi
Application
Air Brake Harness, Formed Air Brake Harness Assemblies, Formed Tubes, Trailer Air Brake Systems, Truck Air Brake and Auxiliary Air Systems
Product Type
Air Brake Tubing
Air Brake Type
Type B
Maximum Working Pressure
150 psi
Resistance Properties
Jacket Material
No Jacket
Jacket Color
No Jacket
Includes Fittings
No
Reinforcement
Polyester Braid
Tube Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
200 Degrees F
Weight per Foot
0.039 lb/ft
Temperature Range
-40 Degrees to 200 Degrees F

Description

Tubing, Product Type Air Brake Tubing, Air Brake Type Type B, Application Air Brake Harness, Formed Air Brake Harness Assemblies, Formed Tubes, Trailer Air Brake Systems, Truck Air Brake and Auxiliary Air Systems, Bend Radius 2 in, Coiled Air Tube Application Not Applicable, Color Silver, Maximum Operating Temperature 200 Degrees F, Includes Fittings No, Fitting Side A Material Not Applicable, Specific Fitting Side A Shape Not Applicable, Fitting Side A Gender Not Applicable
