Air Cylinders
- Mfr # 3.25CTEF4MA3U14AC08.00
- Zoro # G122886633
product price:Â
$
411.99
/ea
Free Shipping & Returns
Key Features
Piston Rod Material Finish
Chrome Plated
Standards
RoHS
Retracted Length
13 5/8 in
System of Measurement
Inch
End Cap Material Finish
Black Anodized
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3.25CTEF4MA3U14AC08.00
- Zoro #
- G122886633
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Retracted Length
- 13 5/8 in
- Rod Thread Size
- 3/4" 16
- Rod Thread Length
- 1 1/8 in
- Overall Width
- 3 3/4 in
- Overall Height
- 3 3/4 in
- Inlet Size
- 1/2"
- Rod Diameter
- 1 in
- End Cap Length
- 1 1/8 in
- Extended Length
- 21 5/8 in
- Bore Diameter
- 3 1/4 in
- Stroke Length
- 8 in
Description

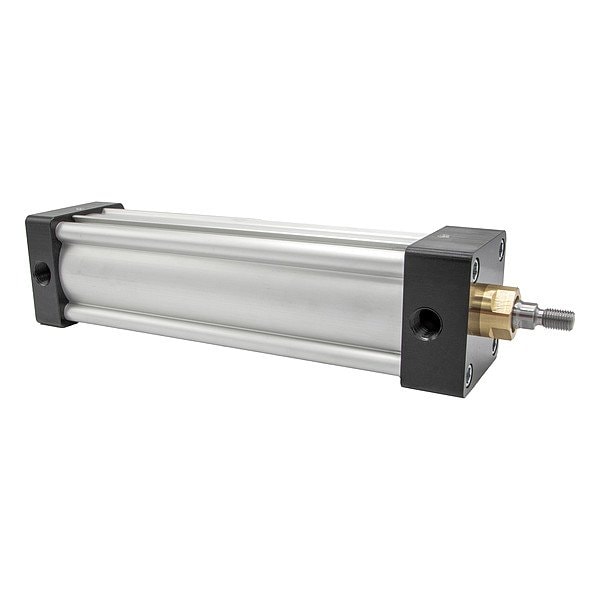

Tie Rod Air Cylinder, Body Material Aluminum, Cylinder Type Tie Rod, Cylinder Repair Repairable, Magnetic Piston Magnetic Piston, Mounting Type Sleeve Nut, Bore Diameter 3 1/4 in, Cushion Type Head and Cap, Stroke Length 8 in, Inlet Size 1/2 In., Air Inlet Type NPT, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front, Tie Rod Material Carbon Steel
