Air Cylinders
Mfr # P1F-S063MC-0050-0000
Zoro # G422887071
product price:Â
$
198.99
/ea
Free Shipping & Returns
Key Features
Piston Rod Material
Carbon Steel
Stroke Length
50 mm
Series
P1F-S
Rod Thread Size
M16x1.5
Cylinder Type
Extruded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- P1F-S063MC-0050-0000
- Zoro #
- G422887071
- UPC #
- -
- Country of Origin
- United States
- Piston Rod Material
- Carbon Steel
- Series
- P1F-S
- Cylinder Type
- Extruded
- Rod Gender
- Male
- Maximum Operating Pressure
- 10 bar
- Number of Rods
- Single Rod
- Minimum Operating Temperature
- -20 Degrees C
- Item
- Tie Rod Air Cylinder
- Maximum Operating Temperature
- 80 Degrees C
- Rod Rotation
- Rotating Rod
- System of Measurement
- Metric
- Cushion Type
- Adjustable
- Air Inlet Type
- G
- Magnetic Piston
- Magnetic Piston
- For Fluid Type
- Dry, Filtered Compressed Air
- Standards
- ATEX (CE EX II 2GD c T4 120 Degrees C), ISO 15552
- Tie Rod Material
- Stainless Steel
- Minimum Operating Pressure
- 1 bar
- Piston Material
- Polyoxymethylene
- Body Material
- Aluminum
- Body Material Finish
- Anodized
- Piston Rod Material Finish
- Chrome Plated
- Cylinder Repair
- Repairable
Description

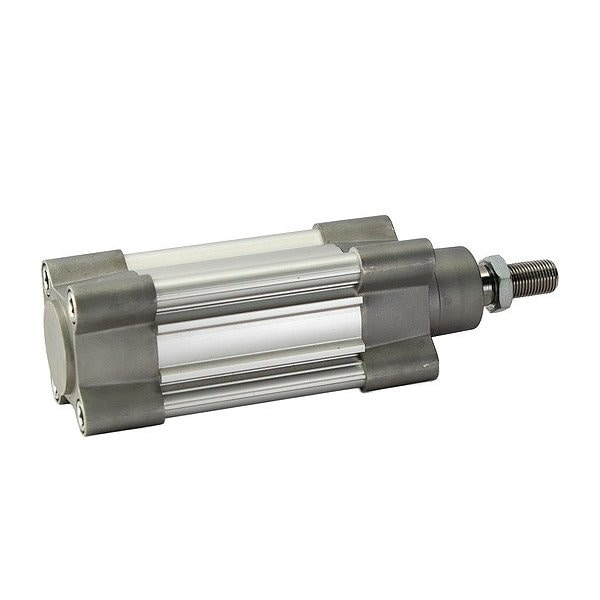

Tie Rod Air Cylinder, Body Material Aluminum, Cylinder Type Extruded, Cylinder Repair Repairable, Magnetic Piston Magnetic Piston, Mounting Type Sleeve Nut, Bore Diameter 63 mm, Cushion Type Adjustable, Stroke Length 50 mm, Inlet Size 3/8 in, Air Inlet Type G, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Tie Rod Material Stainless Steel, Overall Width 75 mm, Overall Height 75 mm
