Wilkerson

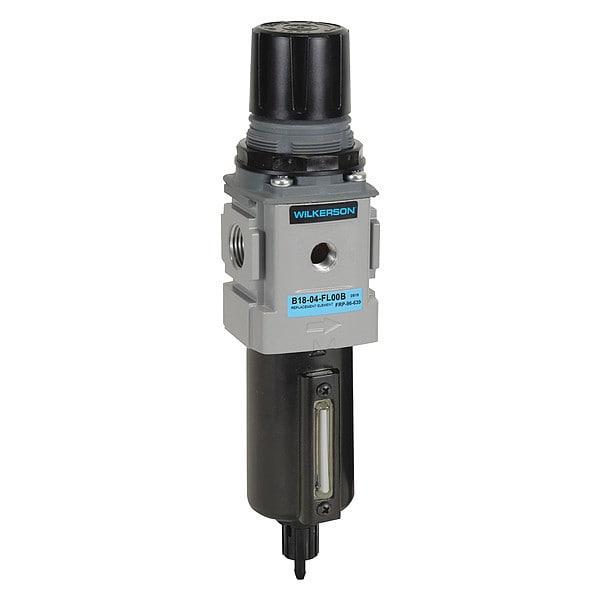

Filter-Regulator, Particles/Water Removal

product price: $94.19
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 1/4 in NPT
  • Filter Rating - Air Treatment 5 micron
  • Max. Incoming Pressure - Air Treatment 250 psi
  • Max. Flow - Air Treatment 140 cfm
  • Adjustment Range - Air Treatment 0 to 125 psi
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/4 in NPT
Size - Air Treatment Compact
Bowl Size - Air Treatment 1.7 oz
Overall Width 2 3/8 in
Overall Height 10 5/16 in
Gauge Port Size 1/4 in
Overall Depth 2 1/4 in
Air Outlet Size 1/4 in
Pressure Gauge Port Size 1/4 in
Air Inlet Size 1/4 in

Details

Item - Filter-Regulators Filter-Regulator
Filter Rating - Air Treatment 5 micron
Max. Incoming Pressure - Air Treatment 250 psi
Max. Flow - Air Treatment 140 cfm
Adjustment Range - Air Treatment 0 to 125 psi
Bowl Material - Air Treatment Metal with Sight Gauge
Filter Rating 5 micron
Includes Panel Nut
For Removal Of Particles, Water
Item Filter-Regulator
Max. Temp. 150 Degrees F
Drain Type Manual
Standards ISO 8573-1: 1991 Class 3, ISO 8573-1: 2001 Class 6, ISO Class 3
Weight 1.17 lb
Seal Material Nitrile
Air Outlet Type NPT
Maximum Regulated Pressure 125 psi
Regulator Type Relieving
Filter Element Material Polyethylene
Body Material Aluminum
Pressure Drop 14.5 psi
Pressure Gauge Included No
Sight Gauge Included Yes
Series B18
Adjustment Mechanism Knob
Differential Pressure Indicator Included Yes
Modular Connection Modular Connection
Air Inlet Type NPT
Number of Air Inlets 1
ISO Class 6
Minimum Regulated Pressure 0 psi
Adjustment Mechanism Material Acetal
For Substance Type Particles, Water
Maximum Flow Rate 148 cfm
System Location Air Line
Maximum Operating Temperature 150 Degrees F
Drain Included Yes
Minimum Operating Temperature -13 Degrees F
Filter Bowl Material Metal
Drain Part Compatibility GRP-96-636
For Fluid Type Particles, Water
Filter Bowl Capacity 1.72 oz
Filter Type Particulate
Number of Air Outlets 1
Maximum Operating Pressure 250 psi

Description

Filter-Regulator, Filter Bowl Material Metal, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 148 cfm, Filter Rating 5 micron, Filter Type Particulate, Maximum Operating Pressure 250 psi, Drain Type Manual, Pressure Gauge Included No, Body Material Aluminum, Overall Width 2 3/8 in, Series B18, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 1/4 in, Air Outlet Type NPT, Differential Pressure Indicator Included Yes, Drain Included Yes

Restrictions

  • WARNING: This product can expose you to chemicals including Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
