Parker

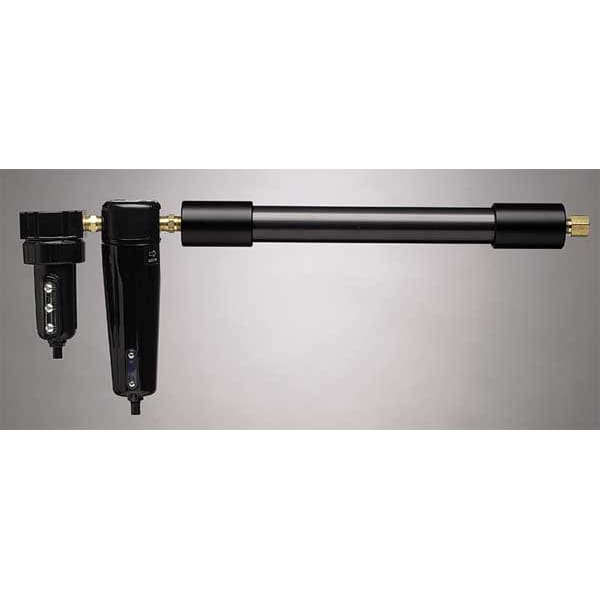

Air Dryer, Membrane, 20 CFM, 1/2 In

product price: $3,197.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • ISO Class 4, 5, 6
  • CFM 20
  • Dew Point (Deg. F) 35
  • Type Membrane
  • Max. Inlet Temp. (Deg. F) 120 Degrees F
See all product information

Product Information

Dimensions

Height (In.) 12.4 in
Width (In.) 28.5 in
Overall Height 12 13/32 in
Overall Width 4 in
Overall Depth 28 1/2 in
Air Inlet Size 1/2 in
Air Outlet Size 1/2 in

Details

ISO Class 4, 5, 6
CFM 20
Dew Point (Deg. F) 35
Type Membrane
Max. Inlet Temp. (Deg. F) 120 Degrees F
Max. Pressure (PSI) 150 psi
Max. Ambient Temp. (F) 120 Degrees F
Features Quiet Operation
Bracket Kit Included
Series AD
Filter Grade BX Coalescing
Includes Auto Drain
Item Membrane Air Dryer
Inlet/Outlet (In.) 1/2 in
Maximum Ambient Temperature 120 Degrees F
Dew Point 35 Degrees F
Maximum Flow Rate 20 cfm
Air Outlet Type NPT
Air Inlet Gender Female
Air Inlet Type NPT
Minimum Flow Rate 20 cfm
Filtered Substance Oil, Water
Filter Rating 0.01 micron
Filter Type Coalescing
Air Outlet Gender Female
Maximum Operating Temperature 120 Degrees F
Filter Element Life 1 yr
Number of Air Inlets 1
Pressure Drop 5 psid
Bracket Kit Included Yes
Number of Air Outlets 1
Maximum Operating Pressure 150 psi
Maximum Flow @ 100 psi 20 scfm
Drain Type Automatic
Drain Included Yes
Filter Element Compatibility 8104N-1A1-BX
Number of Stages 3

Description

Membrane Air Dryer, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 20 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 120 Degrees F, Maximum Ambient Temperature 120 Degrees F, Drain Type Automatic, ISO Class 4, 5, 6, Dew Point 35 Degrees F, Overall Width 4 in, Overall Height 12 13/32 in, Series AD, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/2 in, Air Outlet Type NPT, Bracket Kit Included Yes, Drain Included Yes
