Shop All Membrane Air Dryers
Parker

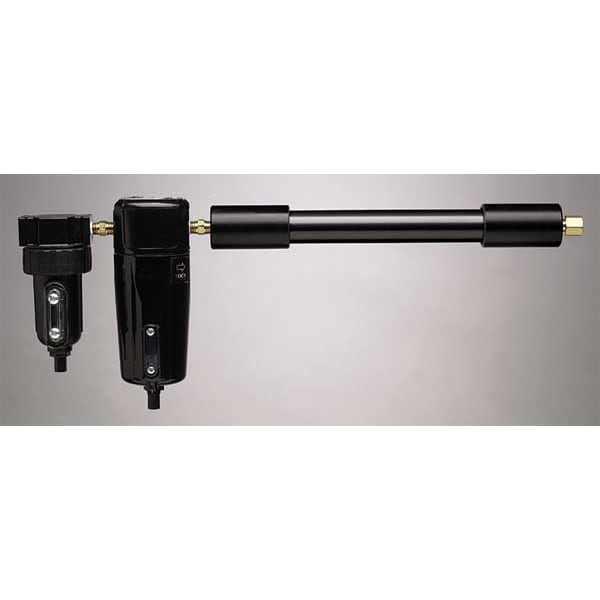

Air Dryer, Membrane, 3 CFM, 1/4 In

product price: $1,252.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • ISO Class 4, 5, 6
  • CFM 3
  • Dew Point (Deg. F) 35
  • Max. Ambient Temp. (F) 120 Degrees F
  • Max. Inlet Temp. (Deg. F) 120 Degrees F
See all product information

Product Information

Dimensions

Height (In.) 9.4 in
Width (In.) 22.1 in
Overall Width 3 in
Overall Height 9 13/32 in
Air Inlet Size 1/4 in
Air Outlet Size 1/4 in
Overall Depth 22 1/8 in

Details

ISO Class 4, 5, 6
CFM 3
Dew Point (Deg. F) 35
Item Membrane Air Dryer
Max. Ambient Temp. (F) 120 Degrees F
Max. Inlet Temp. (Deg. F) 120 Degrees F
Includes Auto Drain
Max. Pressure (PSI) 150 psi
Series AD
Bracket Kit Included
Inlet/Outlet (In.) 1/4 in
Filter Grade BX Coalescing
Features Quiet Operation
Type Membrane
Number of Stages 3
Number of Air Inlets 1
Air Inlet Type NPT
Drain Type Automatic
Drain Included Yes
Bracket Kit Included Yes
Air Inlet Gender Female
Maximum Flow @ 100 psi 3 scfm
Air Outlet Gender Female
Maximum Operating Pressure 150 psi
Maximum Ambient Temperature 120 Degrees F
Maximum Flow Rate 3 cfm
Pressure Drop 3 psid
Air Outlet Type NPT
Minimum Flow Rate 3 cfm
Dew Point 35 Degrees F
Maximum Operating Temperature 120 Degrees F
Filtered Substance Oil, Water
Number of Air Outlets 1
Filter Element Compatibility 8002N-1A1-BX
Filter Element Life 1 yr
Filter Rating 0.01 micron
Filter Type Coalescing

Description

Membrane Air Dryer, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 3 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 120 Degrees F, Maximum Ambient Temperature 120 Degrees F, Drain Type Automatic, ISO Class 4, 5, 6, Dew Point 35 Degrees F, Overall Width 3 in, Overall Height 9 13/32 in, Series AD, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/4 in, Air Outlet Type NPT, Bracket Kit Included Yes, Drain Included Yes
