Parker

Air Line Lubricator, 1/2In, 90 cfm, 250 psi

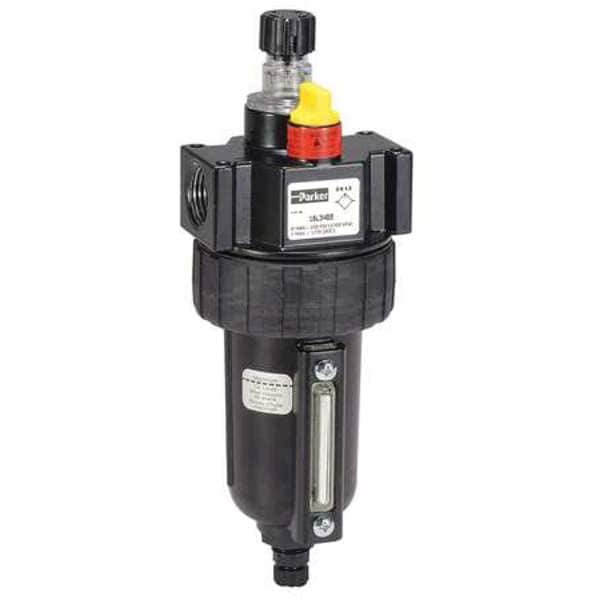

Parker Air Line Lubricator, 1/2In, 90 cfm, 250 psi 16L34BE
Hover or click to zoom Tap to zoom
$157.83
  • Item: Compressed Air Lubricator
  • Series: 16L
  • Bowl Material: Metal
See full product details
This item ships free.
Total: $157.83

Parker #16L34BE Specifications

  • Item: Compressed Air Lubricator
  • Series: 16L
  • Bowl Material: Metal
  • Pipe Size: 1/2 in NPT
  • Max. Flow: 90 cfm
  • Max. Pressure: 250 psi
  • Overall Height: 7 13/16 in
  • Overall Width: 2 3/4 in
  • Drain Included: Yes
  • Oil Capacity: 2.6 oz
  • Adjustment Type: Screwdriver
  • Max. Temp.: 175 Degrees F
  • Overall Length: 2.81 in
  • Sight Dome Included: Yes
  • Bowl Size: 2.6 oz
  • Max. Pipe Run: 100 ft
  • Body Material: Zinc
  • Dome Material: Polycarbonate
  • Oil Feed Type: Micromist
  • Air Outlet Size: 1/2 in
  • Number of Air Outlets: 1
  • Air Outlet Type: NPT
  • For Fluid Type: Compressed Air
  • Pressure Drop: 5 psi
  • Air Inlet Type: NPT
  • For Substance Type: Air
  • Inlet Size: 1/2 in NPT
  • Weight: 1.2 lb
  • Adjustment Mechanism: Knob
  • Drain Type: Manual
  • Maximum Operating Pressure: 250 psi
  • Minimum Operating Temperature: 32 Degrees F
  • Recommended Lubricant: F442 Oil
  • System Location: Air Line
  • Modular Connection: Modular Connection
  • Seal Material: Nitrile Rubber
  • Includes: Bowl, Drain, Fill Plug, Gauge, Sight Dome
  • Lubricator Bowl Guard Included: No
  • Lubricator Bowl Material: Zinc
  • Maximum Operating Temperature: 175 Degrees F
  • For Maximum Pipe Run: 100 ft
  • Lubricator Bowl Capacity: 2.6 oz
  • Maximum Flow Rate: 90 cfm
  • Drain Part Compatibility: PS729P
  • Overall Depth: 2 3/4 in
  • Minimum Operating Pressure: 0 psig
  • Number of Air Inlets: 1
  • Air Inlet Size: 1/2 in
  • Lubricator Type: Micro Mist
  • Sight Gauge Included: Yes
  • Country of Origin (subject to change): United States

Description

Air Line Lubricator, 06 Series, Bowl Material Zinc, Pipe Size 1/2 in NPT, Max. Flow 90 cfm, Max. Pressure 250 psi, Zinc Body Material, Max. Temp. 175 Degrees F, Bowl Size 2.6 oz, Oil Capacity 2.6 oz, Adjustment Type Screwdriver, Oil Feed Type Micromist, Sight Dome Included Yes, Dome Material Polycarbonate, Max. Pipe Run 100 ft, Drain Included Yes, Overall Height 7.82 in, Overall Length 2.81 in, Overall Width 2.74 in
