Shop PARKER

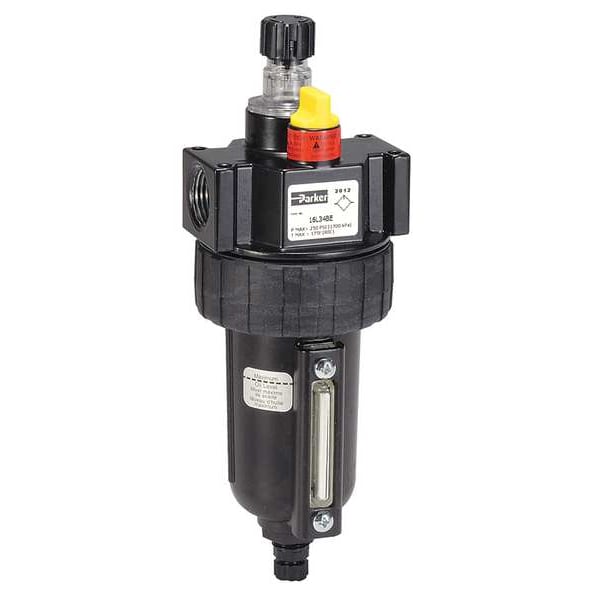

Air Line Lubricator, 1/4In, 40 cfm, 250 psi

  • Mfr # 16L14BE

  • Zoro # G4862426

product price:  $171.99
/ea
Free Shipping & Returns

Key Features

Series
16L
Bowl Material
Zinc
Pipe Size
1/4 in NPT
Max. Flow
40 cfm
Max. Pressure
250 psi
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
16L14BE
Zoro #
G4862426
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4 in NPT
Overall Height
7 13/16 in
Overall Width
2 3/4 in
Bowl Size
2.6 oz
Overall Length
2.81 in
Overall Depth
2 3/4 in
Air Inlet Size
1/4 in
Air Outlet Size
1/4 in

Details

Item
Compressed Air Lubricator
Series
16L
Bowl Material
Zinc
Max. Flow
40 cfm
Max. Pressure
250 psi
Body Material
Zinc
Oil Capacity
2.6 oz
Max. Pipe Run
100 ft
Max. Temp.
175 Degrees F
Dome Material
Polycarbonate
Adjustment Type
Screwdriver
Sight Dome Included
Yes
Drain Included
Yes
Oil Feed Type
Micromist
Minimum Operating Temperature
32 Degrees F
Recommended Lubricant
F442 Oil
For Substance Type
Air
Lubricator Bowl Capacity
2.6 oz
Maximum Operating Pressure
250 psi
Pressure Drop
5 psi
Maximum Flow Rate
40 cfm
Minimum Operating Pressure
0 psig
Lubricator Bowl Material
Zinc
For Fluid Type
Compressed Air
Lubricator Type
Micro Mist
Weight
1.2 lb
Air Outlet Type
NPT
Number of Air Outlets
1
Adjustment Mechanism
Knob
Lubricator Bowl Guard Included
No
Drain Part Compatibility
PS729P
Seal Material
Nitrile Rubber
Drain Type
Manual
Air Inlet Type
NPT
Includes
Bowl, Drain, Fill Plug, Gauge, Sight Dome
Modular Connection
Modular Connection
Maximum Operating Temperature
175 Degrees F
System Location
Air Line
For Maximum Pipe Run
100 ft
Sight Gauge Included
Yes
Number of Air Inlets
1
Material
Zinc
Features
Proportional Oil Delivery, Low Pick Up Flow, And Precise Oil Adjustment

Description

Compressed Air Lubricator, Lubricator Type Micro Mist, Lubricator Bowl Material Zinc, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 40 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 175 Degrees F, Adjustment Mechanism Knob, Body Material Zinc, Overall Width 2 3/4 in, Series 16L, Sight Dome Included Yes, Sight Gauge Included Yes, Air Outlet Size 1/4 in, Air Outlet Type NPT, Drain Included Yes, Drain Part Compatibility PS729P, Drain Type Manual
