Shop PARKER

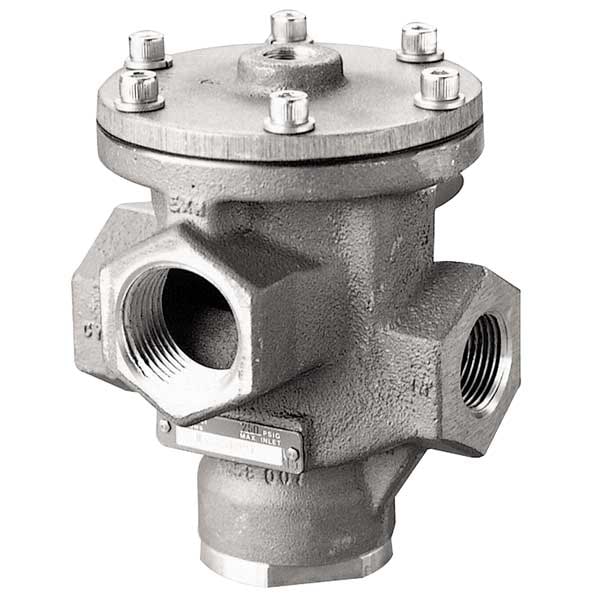

Air Pilot Valve, Normally Closed, 1-1/4 In

  • Mfr # N32471091

  • Zoro # G2751104

product price:
$
627.99
/ea
Free Shipping & Returns

Key Features

Body Style
Inline
Series
N
Valve Actuator / Return
Air Pilot / Air Return
Pilot Pressure
25 psi
Overall Height
5 15/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
N32471091
Zoro #
G2751104
UPC #
-
Country of Origin
United States
Item
Pilot Air Control Valve
Body Style
Inline
Series
N
Valve Actuator / Return
Air Pilot / Air Return
Pilot Pressure
25 psi
Body Material
Aluminum
Override
No Override
Actuator/Return
Air Pilot/Air Return
Valve Ways and Positions
2-Way/2-Position
Type
Normally Closed
Max. Operating PSI
140 psi
NPT Port (In.)
1/4
Number of Positions
Two-Position
Vacuum
External Pilot
Number of Ways
Two-Way
Max. CFM - Valves
35 cfm
Standards
CE Certified
Valve Port Connection Type
NPT
Flow Rate - Maximum
35 scfm
Operating Temperature - Maximum
200 Degrees F
Seal Material
Nitrile
Coefficient of Volume (Cv)
30
Pilot Port Connection Type
NPT
Operating Temperature - Minimum
0 Degrees F
Product Type
Pilot Air Control Valve
Operating Pressure - Maximum
250 psi
Lubrication
Lubrication Not Required
Valve Type
Poppet
Return Action
Pilot Return
Valve Action
Normally Closed
For Media
Air
Actuator Type
Remote Pilot
Fail Position
Closed
Application
Automotive, Foundries, Pulp and Paper Mills, Steel Mills

Description

Pilot Air Control Valve, Valve Ways and Positions 2-Way/2-Position, Valve Actuator / Return Air Pilot / Air Return, Valve Port Size 1 1/4 in Outlet, 1 in Inlet, Max. CFM - Valves 35 cfm, Center Position Not Applicable, Max. Operating PSI 140 psi, Pilot Pressure 25 psi, Pilot Port Size NPT (In.) 1/4, Vacuum External Pilot, Length (In.) 5 1/4 in, Width (In.) 6 in, Height (In.) 7 1/2 in, Pilot Air Control Valve
