Shop PARKER

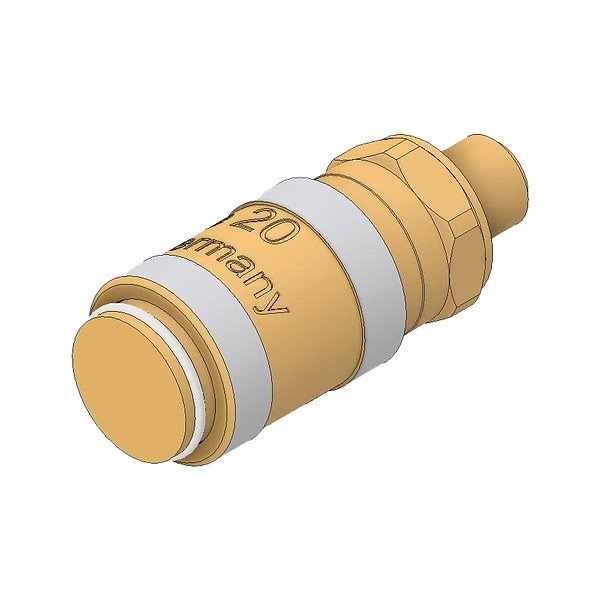

Coupler

  • Mfr # 20KAAF05MPX

  • Zoro # G416423957

product price:  $17.75
/ea

Key Features

Material
Brass
Coupling Component
Plug
Hose Fitting Gender
Male
Connection Type
Threaded
Hose Fitting Size
3/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
20KAAF05MPX
Zoro #
G416423957
UPC #
-
Country of Origin
Germany

Dimensions

Hose Fitting Size
3/16 in
Thread Size
M5
Body Size - Quick Connect Air Couplings
1/8 in

Details

Item
Quick Connect Air Coupling
Material
Brass
Coupling Component
Plug
Hose Fitting Gender
Male
Connection Type
Threaded
Finish/Coating
Nickel-Plated
Max. Flow Rate
165 lpm
Seal Material
HNBR
Includes Valve
Yes
Temp. Range
-4 Degrees to 212 Degrees F
Standards
ATEX, RoHS
Valve Type
Standard
For Use With
Gas, Liquids, Pneumatic
Interchange Type
European Profile
Max. Working Pressure @ 70 F
35 bar
Connection Thread Type
UNF
Coupling Locking Type
Push-to-Connect
Barbed
No

Description

The PARKER - 20KAAF05MPX is configured for quick, tool-free hose or line connection and disconnection. Includes an internal valve that closes to stop fluid or air flow upon disconnection, supporting hose isolation in pneumatic, hydraulic, and fluid-transfer systems. Is suitable for use with the specified media types (gas, liquids, and pneumatic media). This fitting features a male plug design with a UNF connection type and a nominal hose fitting size of 5 mm.

Key Features:

  • Body size of 2 45/64 mm for the quick connect air coupling interface.
  • Brass construction with a nickel-plated finish for has a nickel-plated finish on visible brass surfaces.
  • Includes a standard-type valve to control flow during connection and disconnection.
  • Sealed with NBR (nitrile rubber) materials for fluid and pressure retention.
  • Flow rate maximum: 165 liters per minute (as specified by product rating).
  • Is rated for operation within -4°F to 212°F (-20°C to 100°C).
  • Meets applicable ATEX and RoHS requirements (per product specifications).

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
