Coupler
- Mfr # 20KFTF04MPN
- Zoro # G116315477
Key Features
Specifications
Product Information
- MFR #
- 20KFTF04MPN
- Zoro #
- G116315477
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Hose Fitting Size
- 3/16 in
- Thread Size
- M4
- Body Size - Quick Connect Air Couplings
- 1/8 in
- Barb Size
- 3/16 in
Details
- Item
- Quick Connect Air Coupling
- Material
- Brass
- Coupling Component
- Plug
- Connection Type
- Hose Barb
- Finish/Coating
- Nickel-Plated
- Max. Flow Rate
- 1.5 lpm
- Seal Material
- HNBR
- Includes Valve
- No
- Temp. Range
- -4 Degrees to 212 Degrees F
- Standards
- ATEX, RoHS
- For Hose I.D.
- 3/16 in
- Includes
- Valve
- Barbed
- Yes
- For Use With
- Gas, Liquids, Pneumatic
- Valve Type
- standard
- Hose Fitting Gender
- Female
- Max. Working Pressure @ 70 F
- 35 bar
- Coupling Locking Type
- Push-to-Connect
- Interchange Type
- European Profile
- Shell Material
- Brass
Description

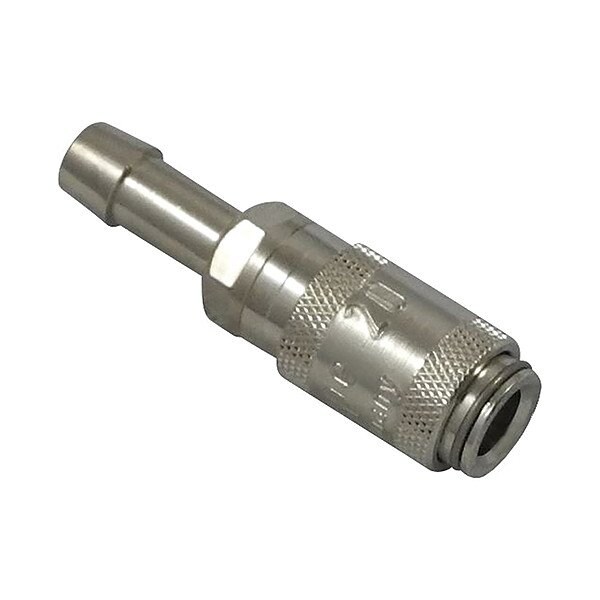

The PARKER - 20KFTF04MPN is a tool-free quick-connect fitting for rapid, tool-free connection and disconnection of hoses using mating male and female halves. This brass fitting features a hose barb connection type compatible with hoses having a 4 mm inner diameter, facilitating fluid or gas transfer in pneumatic and liquid systems. The fitting is finished with nickel plating, and it includes a plug coupling component without an integrated valve, which requires separate valve installation if needed. Is rated for operation from -4°F to 212°F (-20°C to 100°C). The fitting has a maximum rated flow rate of 1.5 liters per minute.
Key Features:
- Material: Brass construction with nickel-plated finish.
- Connection type: Hose barb, designed for 4 mm hose fitting size and hose inner diameter.
- Coupling component: Plug (male half of quick-connect fitting).
- Seal material: NBR (Nitrile) providing sealing capabilities.
- Max. flow rate: 1.5 liters per minute.
- Temperature range: -4°F to 212°F (-20°C to 100°C approximately).
- Includes: Valve not included; valve must be purchased separately.
- Standards: Complies with ATEX and RoHS certifications.
