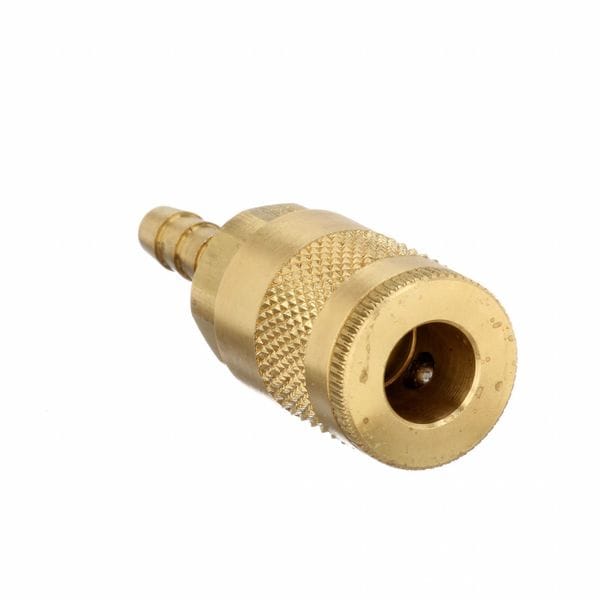

Coupler Body, Brass, Hose Barb, 25 cfm
Mfr # B10-3B
Zoro # G4874597
product price: $27.65
/eaKey Features
Interchange Type
Tru-Flate-Automotive
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Hose Barb
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
B10-3B
Zoro #
G4874597
UPC #
-
Country of Origin
United States
Dimensions
Coupling Size
1/4 in
Barb Size
1/4 in
Overall Length
2 1/2 in
Body Size - Quick Connect Air Couplings
1/4 in
Max. Outside Dia.
15/16 in
Details
Item
Quick Connect Hose Coupling
Interchange Type
Tru-Flate-Automotive
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Hose Barb
Max. Flow Rate
707.92 lpm
Coupling Locking Type
Sleeve
Seal Material
Nitrile
Includes Valve
Yes
Temp. Range
-40 Degrees to 250 Degrees F
Application
Pneumatic
Max. Working Pressure @ 70 F
300 psi
For Hose I.D.
1/4 in
Barbed
Yes
Valve Type
Tubular
Description
The PARKER - B10-3B is a hose coupling intended for pneumatic air systems. It provides push/pull connection using the sleeve locking mechanism (no tools required). This brass coupling features a male hose barb connection compatible with 1/4 in inner diameter hoses. It is used to control air flow via the integral tubular valve during hose changes. The coupling belongs to the Tru-Flate-Automotive interchange type and is rated maximum working pressure: 300 psi at 70°F.
Key Features:
- Body and coupling size: 1/4 in
- Hose barb connection type with a 1/4 in barb size
- Male fitting gender
- Rated flow rate: 707.92 liters per minute
- Overall length of 2.5 in
- Maximum outside diameter of 15/16 in
- Seal made of nitrile material
- Operating temperature range from -40°F to 250°F
- Includes a tubular valve type
- Coupling component classified as socket
- Coupling locking mechanism uses a sleeve
