Coupler Body, Brass, Hose Barb, 25 cfm
Mfr # B20-4B
Zoro # G4875175
Key Features
Specifications
Product Information
Dimensions
Details
Description

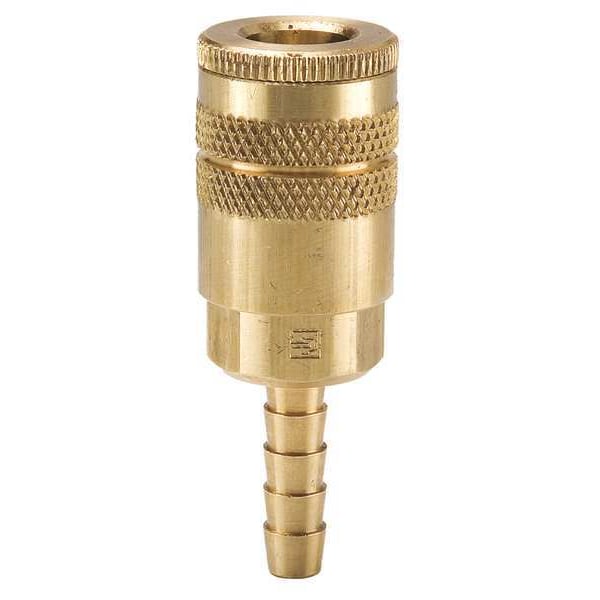

The PARKER - B20-4B is a brass quick connect hose coupling. It features a male hose barb connection with a 5/16 in barb size, serving hoses with a 5/16 in inner diameter. The coupling incorporates a sleeve locking mechanism and an industrial interchange type to facilitate rapid, tool-free connection and disconnection, provides a seal when connected within the specified pressure and temperature ratings. The included tubular valve allows control of fluid or air flow when connected or disconnected, helps control air flow when connected or disconnected using the included tubular valve.
Key Features:
- Material: Brass construction.
- Application: Pneumatic use.
- Connection Type: Hose Barb, male fitting.
- Barb and Hose Fitting Size: 5/16 in.
- Coupling Size and Body Size: 1/4 in.
- Coupling Component: Socket.
- Coupling Locking Type: Sleeve.
- Includes Valve: Yes, tubular valve type.
- Seal Material: Nitrile.
- Maximum Working Pressure: rated for 300 psi at 70°F (maximum working pressure).
- Temperature Range: rated for operation within -40°F to 250°F.
