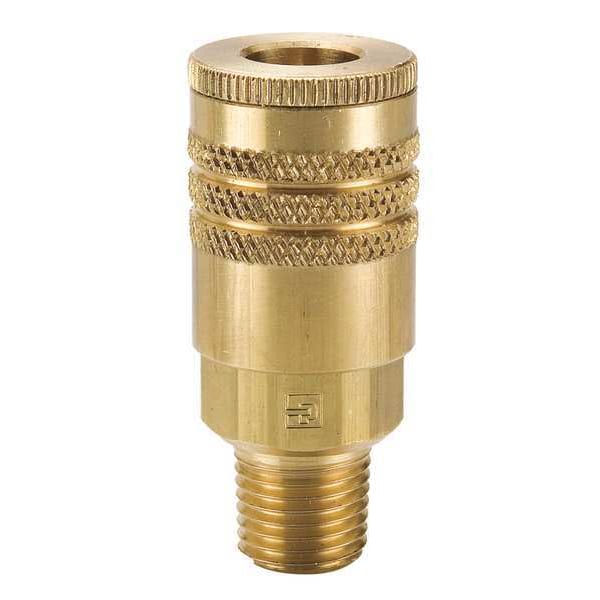

Coupler Body, Brass, MNPT, 1/4 In. Pipe
Mfr # B52
Zoro # G4872743
Key Features
Specifications
Product Information
Dimensions
Details
Description
The PARKER - B52 is a quick connect hose coupling designed for pneumatic applications, featuring a sleeve locking mechanism for connection/disconnection without the use of tools. Constructed from brass, it includes a tubular valve and provides a sealed interface when installed with compatible fittings and within the specified pressure and temperature ranges. This coupling features a sleeve locking mechanism and follows the ARO interchange standard, is intended for use in pneumatic systems where tool-free connection/disconnection may reduce the time required to change hose connections. Rated maximum working pressure: 300 psi, and rated operating temperature range: -40°F to 250°F.
Key Features:
- Hose fitting size and coupling size: 1/4 in
- Connection type: Male NPT thread with 1/4"-18 thread size
- Coupling component: Socket
- Seal material: Nitrile
- Maximum outside diameter: 7/8 in (maximum, as specified).
- Overall length: 2.06 in (as specified).
- Includes valve: Yes, tubular valve type
- Coupling locking type: Sleeve
- Application: Pneumatic
