Coupler Body, Steel, FNPT, 1/2 In. Pipe
Mfr # 25F
Zoro # G4873407
Key Features
Specifications
Product Information
Dimensions
Details
Description

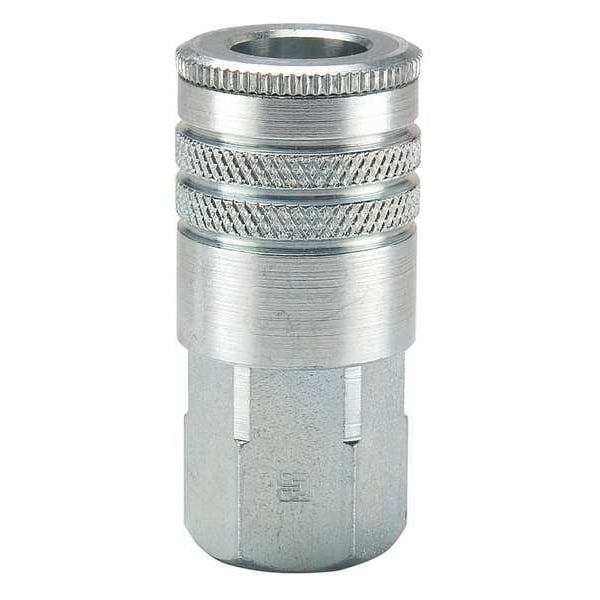

The PARKER - 25F is a quick connect hose coupling designed for pneumatic applications, providing a tool-free connection and disconnection between hoses or equipment. It features a socket coupling component with a sleeve locking mechanism, forming a connection with sealing components (Nitrile seal material) for pneumatic air-line use. The fitting includes an integrated tubular valve and is rated for operation at up to 300 psi at 70°F. Constructed from steel with a trivalent chrome finish, it is compatible with Industrial interchange standards with a maximum flow rate of 50 PCM.
Key Features:
- Application: Pneumatic use
- Body and coupling size: 3/8 in
- Connection type: NPT thread
- Hose fitting gender and size: Female, 1/2 in
- Coupling component: Socket
- Coupling locking type: Sleeve
- Includes valve: Yes, tubular type
- Material: Steel with trivalent chrome finish
- Seal material: Nitrile
- Maximum working pressure: 300 psi @ 70°F
- Maximum flow rate: 50 PCM
- Maximum outside diameter: 1 3/16 in
- Overall length: 2 9/16 in
- Temperature range: -40°F to 250°F
- Thread size: 1/2" -14
- Interchange type: Industrial
