Coupler Body, Steel, Push On, 110 cfm
Mfr # 16-6BP
Zoro # G4874624
product price: $34.39
/eaKey Features
Interchange Type
Industrial
Material
Steel
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Hose Barb
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
16-6BP
Zoro #
G4874624
UPC #
-
Country of Origin
United States
Dimensions
Hose Fitting Size
1/2 in
Coupling Size
1/2 in
Barb Size
1/2 in
Overall Length
3 7/16 in
Body Size - Quick Connect Air Couplings
1/2 in
Max. Outside Dia.
1 3/16 in
Details
Item
Quick Connect Hose Coupling
Interchange Type
Industrial
Material
Steel
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Hose Barb
Finish/Coating
Trivalent Chrome
Max. Flow Rate
3,114.85 lpm
Coupling Locking Type
Sleeve
Seal Material
Nitrile
Includes Valve
Yes
Temp. Range
-40 Degrees to 250 Degrees F
Application
Pneumatic
Valve Type
Tubular
For Hose I.D.
1/2 in
Max. Working Pressure @ 70 F
300 psi
Barbed
Yes
Description

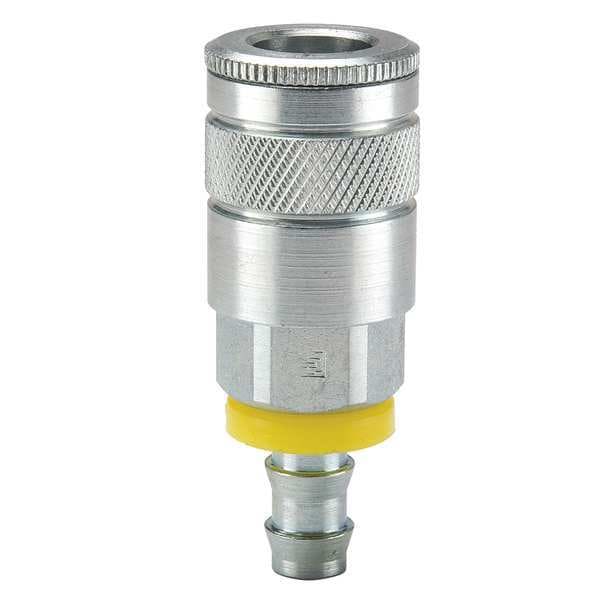

The PARKER - 16-6BP is a quick connect hose coupling designed for pneumatic applications. It provides a sleeve locking mechanism for connection and disconnection without tools. The coupling is compatible with 1/2 inch hose inner diameter and It has a barbed hose tail for attachment to compatible 1/2 in hose (hose inner diameter). It includes a tubular valve for controlling airflow and is constructed from steel with a trivalent chrome finish. Its sealing elements are made of nitrile. Temperature range (specified): -40°F to 250°F.
Key Features:
- Application: Pneumatic
- Connection Type: Hose Barb with Male fitting gender
- Barb Size and Hose Fitting Size: 1/2 in
- Coupling Size and Body Size: 1/2 in
- Coupling Component: Socket
- Coupling Locking Type: Sleeve
- Material: Steel with Trivalent Chrome finish
- Includes Valve Type: Tubular
- Max. Flow Rate: 3,114.85 lpm
- Seal Material: Nitrile
- Overall Length: 3.44 in
- Max. Outside Diameter: 1.187 in
- Temperature Range: -40°F to 250°F
