Coupler Body, Steel, Push On, 50 cfm
Mfr # 24-5BP
Zoro # G4873452
Key Features
Specifications
Product Information
Dimensions
Details
Description

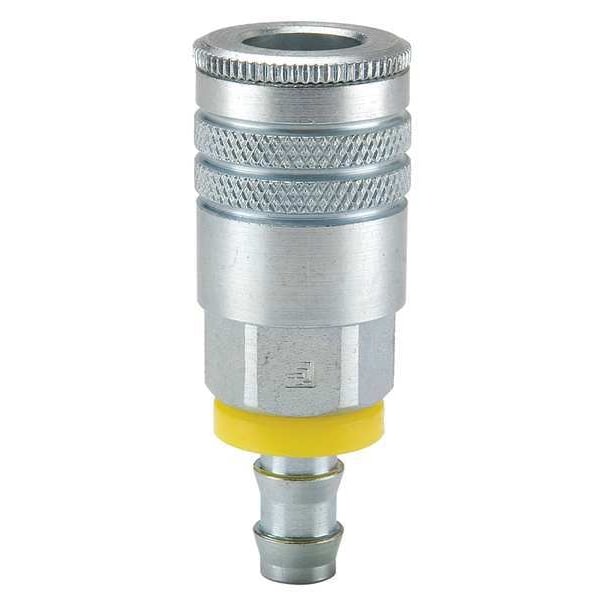

The PARKER - 24-5BP hose coupling is designed for pneumatic applications. It provides connection and disconnection of hoses or equipment using a sleeve locking mechanism. Constructed from steel with a trivalent chrome finish, this coupling is compatible with 3/8 inch hose inner diameters and features a barbed male hose fitting. The coupling includes a tubular valve for air flow control and has a rated for a maximum working pressure of 300 psi at 70°F, rated maximum flow rate: 1,415.84 liters per minute. Compatible with pneumatic fluid/air line applications using 3/8 inch hose inner diameter and rated within the specified pressure and temperature ranges.
Key Features:
- Application: Pneumatic
- Hose Barb connection type with male fitting gender
- Barb size and hose fitting size: 3/8 in
- Coupling size and body quick connect air coupling size: 3/8"
- Coupling component: Socket
- Coupling locking type: Sleeve
- Includes tubular valve for flow control
- Material: Steel with trivalent chrome finish
- Seal material: Nitrile
- Rated for a maximum working pressure of 300 psi at 70°F
- Rated maximum flow rate: 1,415.84 lpm
- Temperature range: -40°F to 250°F
- Overall length: 2.88 in
- Max outside diameter: 1 1/16 in
- Interchange type: Industrial
