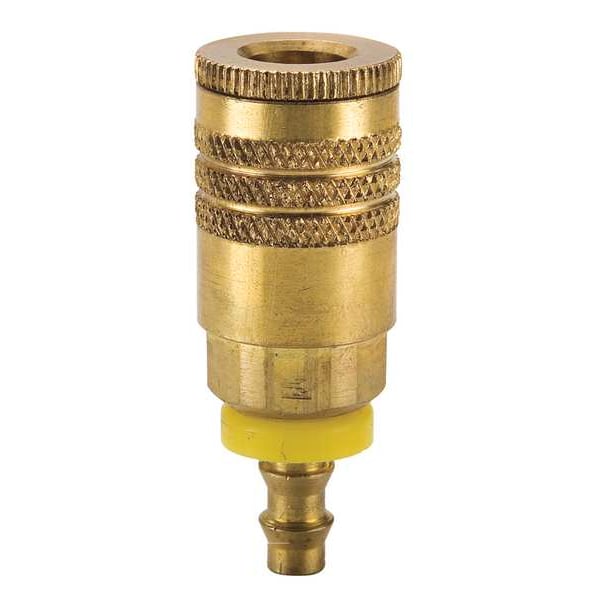

Coupler Body, Brass, Push On, 25 cfm
Mfr # B50-3BP
Zoro # G4875656
product price: $24.49
/eaKey Features
Interchange Type
ARO
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Hose Barb
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
B50-3BP
Zoro #
G4875656
UPC #
-
Country of Origin
United States
Dimensions
Hose Fitting Size
1/4 in
Coupling Size
1/4 in
Barb Size
1/4 in
Overall Length
2 5/16 in
Body Size - Quick Connect Air Couplings
1/4 in
Max. Outside Dia.
7/8 in
Details
Item
Quick Connect Hose Coupling
Interchange Type
ARO
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Hose Barb
Max. Flow Rate
707.92 lpm
Coupling Locking Type
Push-to-Connect
Seal Material
Nitrile
Includes Valve
Yes
Temp. Range
-40 Degrees to 250 Degrees F
Application
Pneumatic
For Hose I.D.
1/4 in
Valve Type
Tubular
Max. Working Pressure @ 70 F
300 psi
Barbed
Yes
Description
The PARKER - B50-3BP is a push-to-connect hose coupling for pneumatic applications, allowing rapid and tool-free connection and disconnection of hoses or equipment. It features a push-to-connect locking mechanism and includes a tubular valve that controls air flow. Made of brass, this coupling is compatible with hoses sized 1/4 in inner diameter and 1/4 in barb size (per specified dimensions). It provides a connection intended to streamline hose changes and reduce downtime in relevant fluid or air line systems.
Key Features:
- Application: Pneumatic
- Connection Type: Hose Barb with Male hose fitting gender
- Barb Size: 1/4 in; Hose Fitting Size: 1/4 in; For Hose I.D.: 1/4 in
- Coupling Component: Socket
- Coupling Locking Type: Push-to-Connect
- Interchange Type: ARO
- Includes Valve: Yes; Valve Type: Tubular
- Material: Brass
- Max. flow rate: 707.92 lpm (when used within the specified pressure/temperature conditions)
- Rated maximum working pressure: 300 psi at 70°F (do not exceed specified ratings)
- Overall Length: 2.31 in (2 5/16 in)
- Max. Outside Diameter: 0.875 in (7/8 in)
- Seal Material: Nitrile
- Rated temperature range: -40°F to 250°F (for use within these temperatures)
