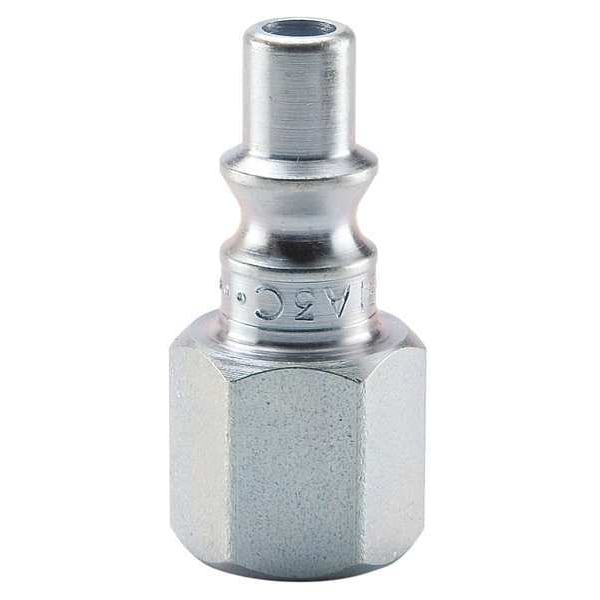

Coupler Plug, Steel, FNPT, 1/4 In. Pipe
Mfr # A3C
Zoro # G4872761
Key Features
Specifications
Product Information
- MFR #
- A3C
- Zoro #
- G4872761
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 1 1/2 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 3/4 in
- Wire Rope Length
- 1 1/2 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- ARO
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Trivalent Chrome
- Max. Flow Rate
- 25 cfm
- Coupling Locking Type
- Sleeve
- Includes Valve
- No
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- Pneumatic
- Max. Working Pressure @ 70 F
- 300 psi
- Barbed
- No
- Connection Thread Type
- NPT
Description
The PARKER - A3C is a hose coupling for pneumatic applications. provides connection/disconnection using a sleeve locking mechanism. provides a sealed connection when installed and used with compatible fittings/hoses within the specified pressure and temperature ratings. made from steel with a trivalent chrome finish, this plug-type coupling features a 1/4-inch body and coupling size with female hose fitting and a 1/4-inch NPT threaded connection. rated maximum flow rate: 25 cfm; rated maximum working pressure: 300 psi at 70°F; rated operating temperature range: -40°F to 250°F.
Key Features:
- Application: Pneumatic systems
- Body and coupling size: 1/4 in
- Connection type: 1/4 in NPT threaded female fitting
- Coupling component type: Plug with sleeve locking mechanism
- Material: Steel with trivalent chrome finish
- Max. flow rate: 25 cfm
- Max. working pressure @ 70°F: 300 psi
- Operating temperature range: -40°F to 250°F
- Overall length: 1.50 in
- Max. outside diameter: 3/4 in
- Interchange type: interchangeable with ARO-type couplings (based on stated interchange type)
- Does not include an integrated valve
