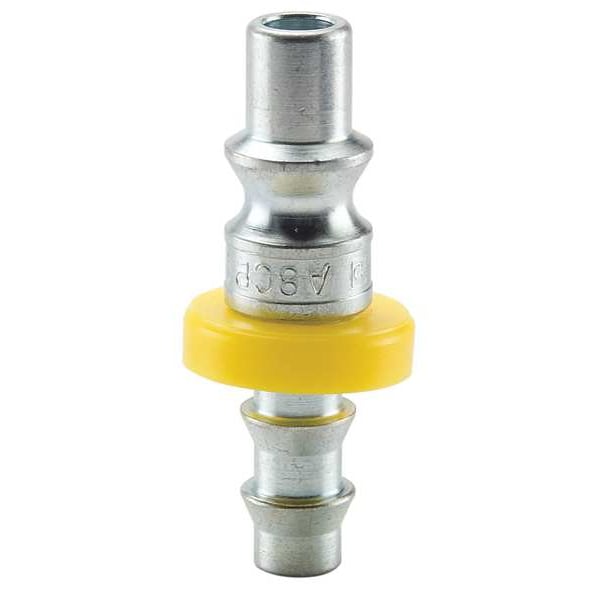

Coupler Plug, Steel, Push On, 25 cfm

The PARKER - A8CP is a quick connect hose coupling designed for pneumatic applications that requires rapid, tool-free connection and disconnection of hoses. It functions as a plug coupling compatible with 1/4 inch hose barb fittings, provides a sealed connection for pneumatic hose coupling when installed with compatible 1/4 in hose barb fittings; leak performance depends on correct installation and system conditions. Constructed from steel with a trivalent chrome finish, it is compatible with hoses having a 1/4 in inner diameter when used with compatible 1/4 in hose barb fittings and has a rated maximum working pressure of 300 psi at 70°F.

Key Features:

• Coupling size and body size both 1/4 inch, compatible with standard 1/4 inch hose connections.
• Hose barb connection type with a barb size of 1/4 inch and male fitting gender.
• Push-to-connect coupling locking type for tool-free and quick engagement.
• Max. flow rate of 25 CFM to accommodate pneumatic system airflow needs.
• Overall length of 1.63 inches and max. outside diameter of 7/16 inch.
• Temperature range from -40°F to 250°F, has a specified operating temperature range of -40°F to 250°F.
• Interchange type ARO, conforming to a common quick-connect standard.
• Does not include an integral valve.
