Shop PARKER

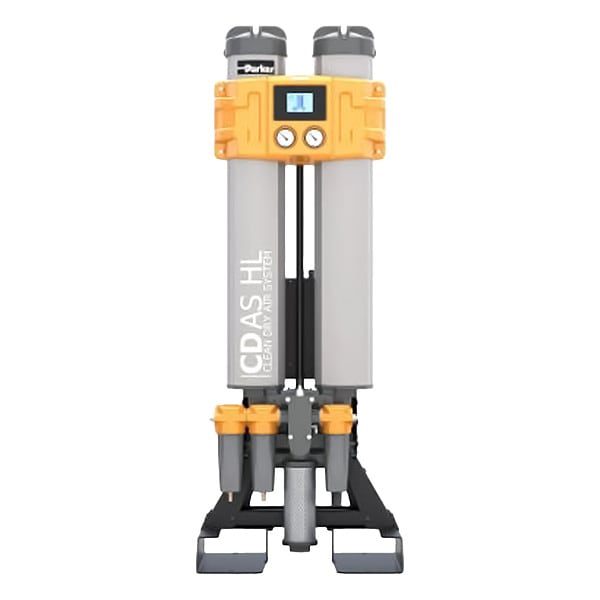

Desiccant Dryer

  • Mfr # CDASHL070-40N16AE

  • Zoro # G111618481

product price:
$
11,073.99
/ea
Additional $220.00 delivery surcharge applies per item.
See details

Key Features

ISO Class
2
Overall Height
80 in
Overall Width
22 in
Overall Depth
19 in
Dew Point
-40 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CDASHL070-40N16AE
Zoro #
G111618481
UPC #
-
Country of Origin
United Kingdom

Dimensions

Overall Height
80 in
Overall Width
22 in
Overall Depth
19 in
Air Inlet Size
3/4 in

Details

Item
Desiccant Dryer
ISO Class
2
Dew Point
-40 Degrees F
Desiccant Material
Activated Alumina, Silica Gel, Molecular Sieve
Features
4 Stages of Purification, Corrosion Protected, Energy Saving Dewpoint Dependent Switching Included as Standard, Full Bore Internal Flow Paths
Stage 2 Filter Type
0.01 Micron Pre Filter
Frequency
50 Hz, 60 Hz
Stage 3 Filter Type
Desiccant Dryer
Stage 4 Filter Type
1 Micron After Filter
Pressure Drop
5 psi
Includes
General Purpose Filter, High Efficiency Coalescing Filter
Phase
Single
Filtered Substance
Oil & Water Aerosols
Maximum Ambient Temperature
131 Degrees F
Electrical Connection Type
Hardwired
Purge Rate
500 lpm
Weight
265 lb
Standards
PED 2014/68/EU Fluid Group II
Filter Included
Pre-Filter & After Filter
Minimum Operating Temperature
41 Degrees F
Air Inlet Type
NPT
Full Load Current
2 A
Voltage
85 to 265V
Stage 1 Filter Type
1 Micron Pre Filter
Series
CDAS
Filter Type
Coalescing, Particulate
Maximum Operating Temperature
122 Degrees F
Maximum Flow Rate
97 cfm
Maximum Operating Pressure
232 psig
Minimum Operating Pressure
58 psig

Description

Desiccant Dryer, Maximum Flow Rate 97 cfm, Voltage 85 to 265V, Phase Single, Maximum Operating Pressure 232 psig, Maximum Operating Temperature 122 Degrees F, Air Inlet Size 3/4 in, Air Inlet Type NPT, Full Load Current 2 A, ISO Class 2, Dew Point -40 Degrees F, Pressure Drop 5 psi, Air Inlet Gender Not Applicable, Air Outlet Gender Not Applicable, Air Outlet Size Not Applicable, Air Outlet Type Not Applicable, Body Material Not Applicable, Bowl Capacity Not Applicable
