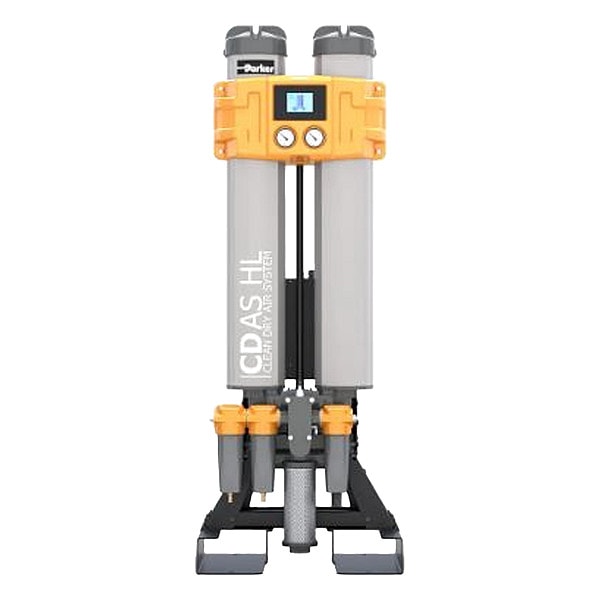

Parker Desiccant Dryer CDASHL080-40N16AE - main

Desiccant Dryer

  • Mfr # CDASHL080-40N16AE

  • Zoro # G211618503

product price: $13,900.99
/ea
Item requires special delivery charges. A $245.00 per item surcharge will be applied.

Key Features

ISO Class
2
Overall Height
69 in
Overall Width
22 in
Overall Depth
27 in
Dew Point
-40 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CDASHL080-40N16AE
Zoro #
G211618503
UPC #
-
Country of Origin
United Kingdom

Dimensions

Overall Height
69 in
Overall Width
22 in
Overall Depth
27 in
Air Inlet Size
1 in

Details

Item
Desiccant Dryer
ISO Class
2
Dew Point
-40 Degrees F
Desiccant Material
Activated Alumina, Silica Gel, Molecular Sieve
Features
4 Stages of Purification, Corrosion Protected, Energy Saving Dewpoint Dependent Switching Included as Standard, Full Bore Internal Flow Paths
Frequency
50 Hz, 60 Hz
Minimum Operating Pressure
58 psig
Stage 4 Filter Type
1 Micron After Filter
Filter Type
Coalescing, Particulate
Full Load Current
2 A
Minimum Operating Temperature
41 Degrees F
Stage 1 Filter Type
1 Micron Pre Filter
Electrical Connection Type
Hardwired
Filtered Substance
Oil & Water Aerosols
Stage 2 Filter Type
0.01 Micron Pre Filter
Maximum Operating Temperature
122 Degrees F
Stage 3 Filter Type
Desiccant Dryer
Standards
PED 2014/68/EU Fluid Group II
Air Inlet Type
NPT
Maximum Ambient Temperature
131 Degrees F
Filter Included
Pre-Filter & After Filter
Maximum Operating Pressure
232 psig
Includes
General Purpose Filter, High Efficiency Coalescing Filter
Series
CDAS
Maximum Flow Rate
142 cfm
Pressure Drop
5 psi
Voltage
85 to 265V
Purge Rate
733 lpm
Weight
397 lb
Phase
Single

Description

Desiccant Dryer, Maximum Flow Rate 142 cfm, Voltage 85 to 265V, Phase Single, Maximum Operating Pressure 232 psig, Maximum Operating Temperature 122 Degrees F, Air Inlet Size 1 in, Air Inlet Type NPT, Full Load Current 2 A, ISO Class 2, Dew Point -40 Degrees F, Pressure Drop 5 psi, Air Inlet Gender Not Applicable, Air Outlet Gender Not Applicable, Air Outlet Size Not Applicable, Air Outlet Type Not Applicable, Body Material Not Applicable, Bowl Capacity Not Applicable
