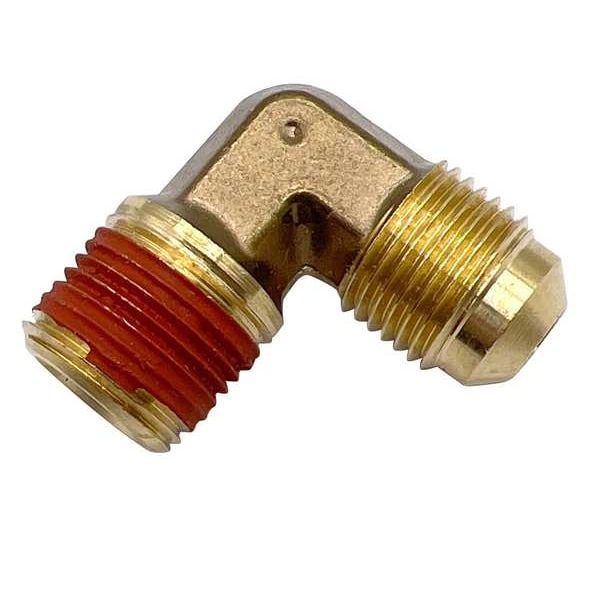

Elbow, Brass, Flared 3/4 in, MNPT 3/4 in
Mfr # VS149F-12-12
Zoro # G705277704
product price:Â
$
18.89
/ea
Key Features
Specific Fitting Shape
90 Degrees Forged Elbow Adapter
Hex Size
7/8 in
Application
LP Gases, Natural Gases
Standards
SAE J512, SAE J513
Fitting Side A Connection Type
Flared
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- VS149F-12-12
- Zoro #
- G705277704
- UPC #
- -
- Country of Origin
- United States
- Item
- Flared Fitting Elbow
- Specific Fitting Shape
- 90 Degrees Forged Elbow Adapter
- Application
- LP Gases, Natural Gases
- Standards
- SAE J512, SAE J513
- Fitting Side A Connection Type
- Flared
- Flare Angle
- 45 Degrees
- Minimum Operating Temperature
- -65 Degrees F
- Maximum Operating Temperature
- 250 Degrees F
- Thread Sealant Type
- Vibra-Seal
- Fitting Side B Connection Type
- MNPT
- Compatible Tube Material
- Aluminum, Brass, Copper, Welded Steel
- Fitting Material
- Brass
- Maximum Operating Pressure
- 2,800 psi
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
- Fitting Shape
- 90 Degrees Elbow
- Operating Pressure - Maximum
- 550 psi
- Material Grade
- CA360
- Operating Temperature - Minimum
- -65 Degrees F
- Operating Temperature - Maximum
- 250 Degrees F
- Fitting Side 1 Connection Type
- Flared
- For Media Type
- Gases
- Connector Type
- Adapter
- Fitting Side 2 Connection Type
- MNPT
- Product Type
- Flared Fitting Adapter
Description
Flared Fitting Elbow, Fitting Material Brass, Flare Angle 45 Degrees , Application LP Gases, Natural Gases, Fitting Side A Connection Type Flared, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 3/4 in, Fitting Side A Tube Outer Diameter 3/4 in, Fitting Thread Size 3/4 In., Hex Size 7/8 in, Maximum Operating Pressure 2,800 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 3 7/32 in, Specific Fitting Shape 90 Degrees Forged Elbow Adapter, Standards SAE J512, SAE J513
