Parker

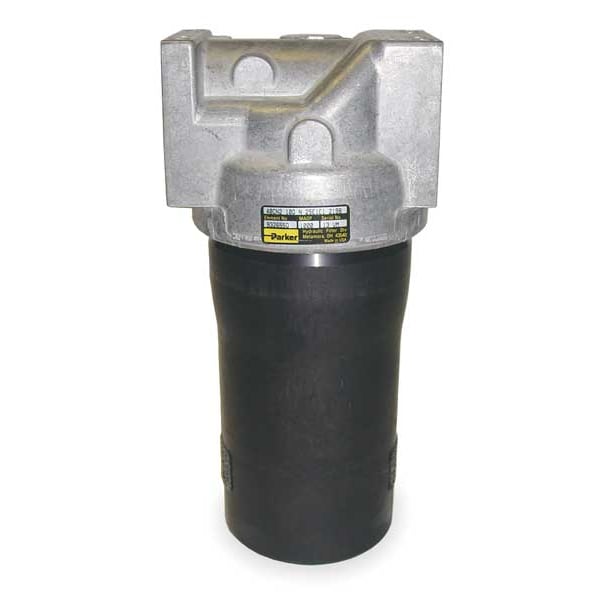

Filter, Hydraulic, 50gpm

product price: $353.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Type - Filters Double Length
  • Bypass Valve Pressure 50 psi
  • Micron Rating 10
  • Filter Media - Filters Paper
  • Inlet Port Thread Size SAE #16
See all product information

Product Information

Dimensions

Inlet Port Thread Size SAE #16
Size 1" SAE 16
Base Dia. (In.) 4.22
Width (In.) 5.00
Height (In.) 12.71
Base Dia. 4.22 in
Outlet Port Thread Size SAE #16
Overall Width 5.0 in
Overall Height 12.71 in

Details

Housing Type - Filters Double Length
Bypass Valve Pressure 50 psi
Micron Rating 10
Filter Media - Filters Paper
Nominal Flow 50 gpm
Max. Pressure 1,000 psi
Application For Low And Medium Pressure Systems In Mobile And Industrial Applications
Material Aluminum
Paper Element (Microns) 10
Housing Type Double Length
Max. Fatigue Pressure Rating (PSI) 800
Bypass Valve Built In 50 PSI
Nominal Flow (GPM) 50
Indicator Mechanical Auto-Resetting
Max. Pressure (PSI) 1000
Item Hydraulic Pressure Filter

Description

Hydraulic Pressure Filter, Max. Pressure 1,000 psi, Housing Type - Filters Double Length, Nominal Flow 50 gpm, Filter Media - Filters Paper, Micron Rating 10, Inlet Port Thread Size SAE #16, Outlet Port Thread Size SAE #16, Bypass Valve Pressure 50 psi, Indicator Style - Filters Mechanical Auto-Resetting, Head Type - Filters Single, Max. Fatigue Pressure Rating 800 psi, Material Aluminum, Overall Height 12.71 in, Overall Width 5.0 in, Base Dia. 4.22 in
