Shop All Hydraulic High Pressure Filters
Parker

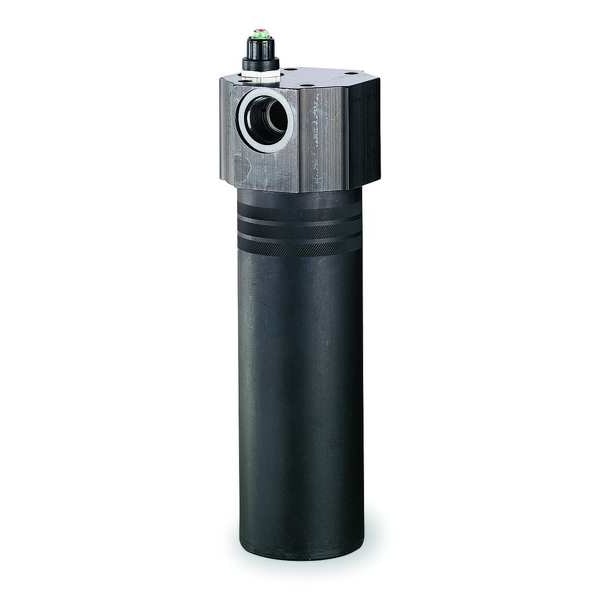

Filter, Pressure

product price: $722.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Type - Filters Double Length
  • Bypass Valve Pressure 50 psi
  • Micron Rating 10
  • Filter Media - Filters Fiberglass
  • Inlet Port Thread Size SAE #16
See all product information

Product Information

Dimensions

Inlet Port Thread Size SAE #16
Width (In.) 4.55
Size 1" SAE 16
Height (In.) 14.30
Base Dia. (In.) 3.89
Outlet Port Thread Size SAE #16
Overall Height 14.3 in
Overall Width 4.55 in
Base Dia. 3.89 in

Details

Housing Type - Filters Double Length
Bypass Valve Pressure 50 psi
Micron Rating 10
Filter Media - Filters Fiberglass
Nominal Flow 50 gpm
Max. Pressure 3,000 psi
Bypass Valve Built In 50 PSI
Application For Intermediate and Higher Pressure Systems in Mobile and Industrial
Indicator Pop Up
Nominal Flow (GPM) 50
Material Anodized aluminum
Max. Fatigue Pressure Rating (PSI) 2000
Item Hydraulic Pressure Filter
Max. Pressure (PSI) 3000
Paper Element (Microns) 10
Housing Type Double Length

Description

Hydraulic Pressure Filter, Max. Pressure 3,000 psi, Housing Type - Filters Double Length, Nominal Flow 50 gpm, Filter Media - Filters Fiberglass, Micron Rating 10, Inlet Port Thread Size SAE #16, Outlet Port Thread Size SAE #16, Bypass Valve Pressure 50 psi, Indicator Style - Filters Pop Up, Head Type - Filters Single, Max. Fatigue Pressure Rating 2000 psi, Material Anodized Aluminum, Overall Height 14.3 in, Overall Width 4.55 in, Base Dia. 3.89 in
