Shop PARKER

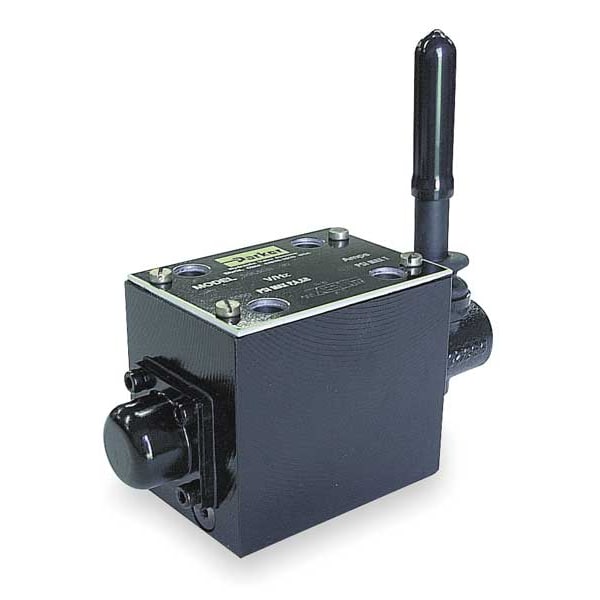

Hydraulic Valve, Four-Way, 40 gpm

  • Mfr # D3L002CN
  • Zoro # G2869474
product price:
$
977.99
/ea
Free Shipping & Returns

Key Features

Body Material
Iron
Seal Type
Nitrile O-Ring
Overall Height
6.42 in
Overall Length
6.87 in
Overall Width
2.76 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D3L002CN
Zoro #
G2869474
UPC #
094706073376
Country of Origin
United States
Item
Hydraulic Directional Valve
Body Material
Iron
Seal Type
Nitrile O-Ring
Series
D3L
Spool Type
Open
GPM @ 3000 PSI
40
Max. Tank Pressure (PSI)
500
Number of Ways
Four-Way
Max. Pressure (PSI)
5000
Max. Flow - Hydraulic Valves
40 gpm
Operation Type - Hydraulic Valves
Lever Operated
Standards
ISO 4401, NFPA D05
Type
Lever Operated
Center Position - Hydraulic Valves
Open
Coil Volts
120V AC
Valve Ways and Positions
4-Way/3-Position
Max. Pressure - Hydraulic Valves
5,000 psi
Number of Positions
Three Positions
Valve Type - Hydraulic Valves
Hydraulic Directional Control Valve
Hz
54 Hz
Holding Amps
.69
Tank Pressure - Maximum
500 psi
Mounting
Subplate-Mounted
Adjustment Method
Lever
Pressure - Maximum
5,000 psi
Operating Temperature - Maximum
140 Degrees F
Valve Control
Directional Control
Operating Temperature - Minimum
-4 Degrees F
Seal Material
NBR
Flow Rate - Maximum
40 gpm
Includes Seals
Seals Included
Center Position
Open Center
Port Connections
Manifold

Description

Hydraulic Directional Valve, Flow Rate - Maximum 40 gpm, NFPA Size D05, Number of Positions Three Positions, Pressure - Maximum 5,000 psi, Valve Control Directional Control, Number of Ways Four-Way, Port Connections Manifold, Center Position Open Center, Series D3L, Overall Height 6.42 in, Standards ISO 4401, NFPA D05, Overall Length 6.87 in, Overall Width 2.76 in, Seal Material NBR, Tank Pressure - Maximum 500 psi, Operating Temperature - Maximum 140 Degrees F
