Shop PARKER

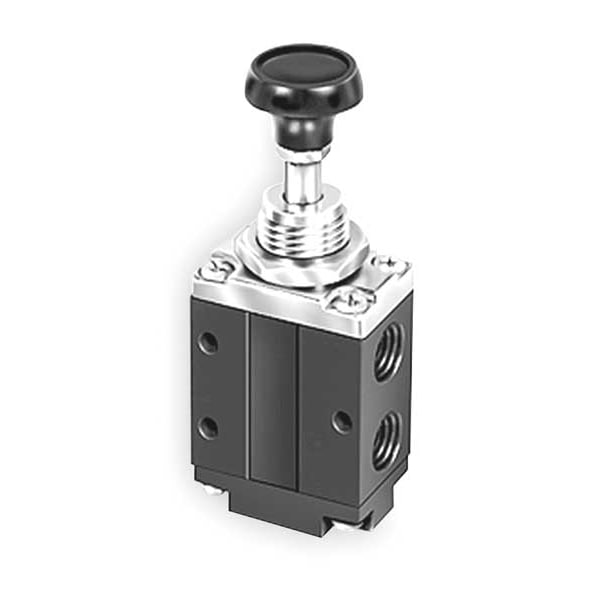

Manual Air Control Valve, 3-Way, 1/4In NPT

  • Mfr # 524431000

  • Zoro # G3310517

product price:
$
174.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Button/Manual
Coefficient of Volume
0.8
Series
DirectAir 4
Number of Ways
Three-Way
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
524431000
Zoro #
G3310517
UPC #
094705013502
Country of Origin
United States

Dimensions

Overall Height
1 5/8 in
Overall Length
4 15/16 in
Overall Width
1 1/16 in
Pipe Size
1/4"
Valve Port Size
1/4 in
For Panel Cutout Width
1/2 in
Valve Port Connection Size
1/4 in
Exhaust Port Connection Size
1/4 in
For Panel Cutout Length
13/16 in
Wire Rope Length
4 15/16 in
Length
4 15/16 in

Details

Item
Manual Air Control Valve
Actuator/Return
Button/Manual
Coefficient of Volume
0.8
Series
DirectAir 4
Number of Ways
Three-Way
Number of Positions
Two-Position
Body Material
Aluminum
Temp. Range
32 Degrees to 175 Degrees F
Max. CFM - Valves
0.83 cfm
Valve Ways and Positions
3-Way/2-Position
Air Valve Type
3-Way, 2-Position
Connection
NPT
Valve Actuator / Return
Button / Manual
Valve Temp. Range
32 Degrees to 175 Degrees F
Valve Max. Pressure Rating
150 psi
Max. Pressure
150 psi
Application
Assembly Lines, Conveyance, Industrial, Packaging
Seal Material
Buna-N
Operating Pressure - Minimum
0 psi
Valve Type
Spool
Actuator Type
Button
Spacer Material
Zinc
Operating Pressure - Maximum
150 psi
Exhaust Port Connection Type
Threaded
Operating Temperature - Maximum
175 Degrees F
Actuator Color
Black
Flow Rate - Maximum
0.83 scfm
Product Type
Manual Air Control Valve
Number of Ports
3
Valve Port Connection Gender
Female
For Media
Air
Body Style
Inline
Exhaust Port Connection Gender
Female
Poppet Material
Nylon
Operating Temperature - Minimum
32 Degrees F
Coefficient of Volume (Cv)
0.83
Bushing Material
Brass
Lubrication
Lubrication Not Required
Return Action
Manual Return
Valve Port Connection Type
NPT
Valve Action
Normally Closed
Standards
CE Certified, RoHS Compliant
Vacuum Rating
Vacuum Operable

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Button / Manual, Max. CFM - Valves 0.83 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 175 Degrees F, Center Position Not Applicable, Coefficient of Volume 0.8, Body Material Aluminum, Overall Length 4 15/16 in, Overall Height 1 5/8 in, Overall Width 1 1/16 in, Series DirectAir 4, Manual Air Control Valve
