Shop PARKER

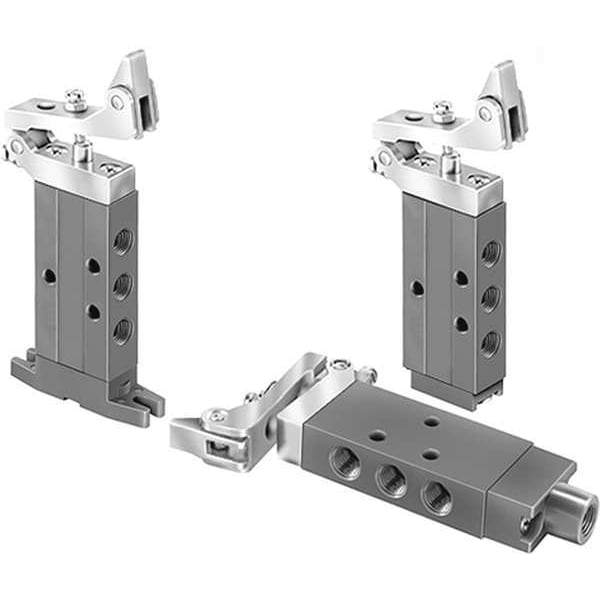

Manual Air Control Valve, 4-Way, 1/8In NPT

  • Mfr # 410311000

  • Zoro # G2697816

product price:  $140.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
1-Way Tripper/Spring
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Four-Way
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
410311000
Zoro #
G2697816
UPC #
000410311000
Country of Origin
United States

Dimensions

Overall Height
2 1/4 in
Overall Length
5 1/4 in
Overall Width
1/2 in
Pipe Size
1/8"
Valve Port Size
1/8 in
Exhaust Port Connection Size
1/8 in
Valve Port Connection Size
1/8 in

Details

Item
Manual Air Control Valve
Actuator/Return
1-Way Tripper/Spring
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Four-Way
Number of Positions
Two-Position
Max. Pressure
150 psi
Body Material
Aluminum
Air Valve Type
4-Way, 2-Position
Valve Actuator / Return
1-Way Tripper / Spring
Temp. Range
32 Degrees to 175 Degrees F
Valve Ways and Positions
4-Way/2-Position
Connection
NPT
Valve Temp. Range
32 Degrees to 175 Degrees F
Valve Max. Pressure Rating
150 psi
Max. CFM - Valves
0.2 cfm
Application
Assembly Lines, Conveyance, Industrial, Packaging
Seal Material
Fluorocarbon/Nitrile
Poppet Material
Nylon
Actuator Color
Black
Valve Port Connection Type
NPT
Coefficient of Volume (Cv)
0.2
Body Style
Inline
Valve Type
Spool
Actuator Type
One-Way Tripper
Lubrication
Lubrication Not Required
Vacuum Rating
Vacuum Operable
Operating Temperature - Maximum
175 Degrees F
For Media
Air
Return Action
Spring Return
Exhaust Port Connection Type
Threaded
Operating Temperature - Minimum
32 Degrees F
Flow Rate - Maximum
0.2 scfm
Operating Pressure - Maximum
150 psi
Product Type
Manual Air Control Valve
Standards
CE Certified, RoHS Compliant
Number of Ports
5
Exhaust Port Connection Gender
Female
Valve Port Connection Gender
Female

Description

Manual Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return 1-Way Tripper / Spring, Max. CFM - Valves 0.2 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 175 Degrees F, Center Position Not Applicable, Coefficient of Volume 0.2, Body Material Aluminum, Overall Length 5 1/4 in, Overall Height 2 1/4 in, Overall Width 1/2 in, Series DirectAir 2, Manual Air Control Valve
