Shop PARKER

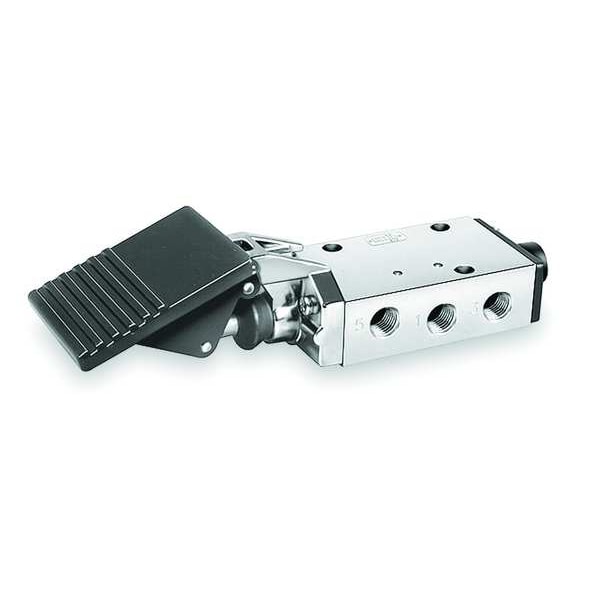

Manual Air Control Valve, 4-Way, 3/8In NPT

  • Mfr # 422CT021K

  • Zoro # G0566937

product price:
$
447.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Foot Pedal/Spring
Coefficient of Volume
2.9
Series
42
Number of Ways
Four-Way
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
422CT021K
Zoro #
G0566937
UPC #
-
Country of Origin
United States
Item
Manual Air Control Valve
Actuator/Return
Foot Pedal/Spring
Coefficient of Volume
2.9
Series
42
Number of Ways
Four-Way
Number of Positions
Two-Position
Max. Pressure
150 psi
Valve Ways and Positions
4-Way/2-Position
Valve Actuator / Return
Foot Pedal / Spring
Max. CFM - Valves
2.9 cfm
Body Material
Aluminum
Temp. Range
0 Degrees to 140 Degrees F
Valve Temp. Range
0 Degrees to 140 Degrees F
Air Valve Type
4-Way, 2-Position
Connection
NPT
Valve Max. Pressure Rating
150 psi
Operating Temperature - Minimum
0 Degrees F
Body Style
Inline
Operating Temperature - Maximum
140 Degrees F
Valve Type
Spool
Operating Pressure - Maximum
150 psi
Coefficient of Volume (Cv)
2.9
Operating Pressure - Minimum
0 psi
Flow Rate - Maximum
2.9 scfm
For Media
Air
Valve Port Connection Gender
Female
Number of Ports
5
Actuator Color
Black
Return Action
Spring Return
Product Type
Manual Air Control Valve
Actuator Type
Foot Pedal
Exhaust Port Connection Gender
Female
Exhaust Port Connection Type
Threaded
Valve Port Connection Type
NPT

Description

Manual Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Port Size 3/8 in, Connection NPT, Valve Actuator / Return Foot Pedal / Spring, Max. CFM - Valves 2.9 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 0 Degrees to 140 Degrees F, Center Position Not Applicable, Coefficient of Volume 2.9, Body Material Aluminum, Overall Length 8 5/8 in, Overall Height 2 1/8 in, Overall Width 2 1/8 in, Series 42, Manual Air Control Valve
