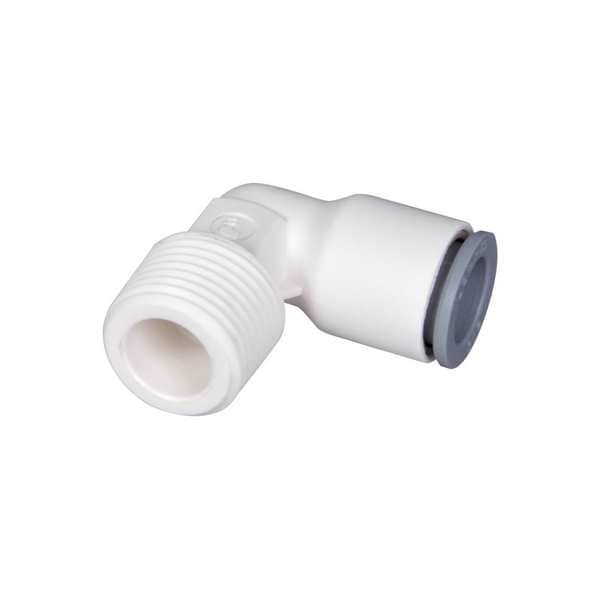

Metric Plastic Push-to-Connect Fitting, Polymer, White
- Mfr # 6579 06 10WP2
- Zoro # G305307191
product price:Â
$
4.29
/ea
Key Features
Specific Fitting Shape
90 Degrees Elbow
Release Ring Material
Stainless Steel
Fitting Side B Pipe Size
1/8 in
Fitting Side A Tube Outer Diameter
6 mm
Minimum Operating Temperature
35 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 6579 06 10WP2
- Zoro #
- G305307191
- UPC #
- -
- Country of Origin
- France
- Item
- Push-Fit Elbow Fitting
- Specific Fitting Shape
- 90 Degrees Elbow
- Release Ring Material
- Stainless Steel
- Minimum Operating Temperature
- 35 Degrees F
- Fitting Side B Connection Type
- MBSPT
- Resistance Properties
- Chemical-Resistant
- Application
- Fluid Transfer, Food Process, Medical, Purification
- Standards
- ACS, DM 174, FDA Approved, KTW, NSF 51, NSF/ANSI 61, REACH Reg: 1935/2004, RoHS, WRAS
- System of Measurement
- Metric
- Release Type
- Ring
- Color
- White
- Fitting Side A Connection Type
- Push-to-Connect
- Maximum Operating Pressure
- 230 psi
- Fitting Material
- Polymer
- Maximum Operating Temperature
- 200 Degrees F
- Compatible Tube Material
- Polyethylene
- Fitting Shape
- 90 Degrees Elbow
- Fitting Side 1 Connection Type
- Push-to-Connect
- Operating Temperature - Minimum
- 35 Degrees F
- Operating Pressure - Maximum
- 230 psi
- Operating Temperature - Maximum
- 200 Degrees F
- Fitting Side 2 Connection Type
- MBSPT
- Series
- Legris
- For Media Type
- Beverages, Potable Water
Description
Push-Fit Elbow Fitting, Application Fluid Transfer, Food Process, Medical, Purification, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MBSPT, Fitting Side B Pipe Size 1/8 in, Fitting Side A Tube Outer Diameter 6 mm, Fitting Material Polymer, Fitting Thread Size 1/8 In., Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Not Applicable, Maximum Operating Pressure 230 psi, Maximum Operating Temperature 200 Degrees F
