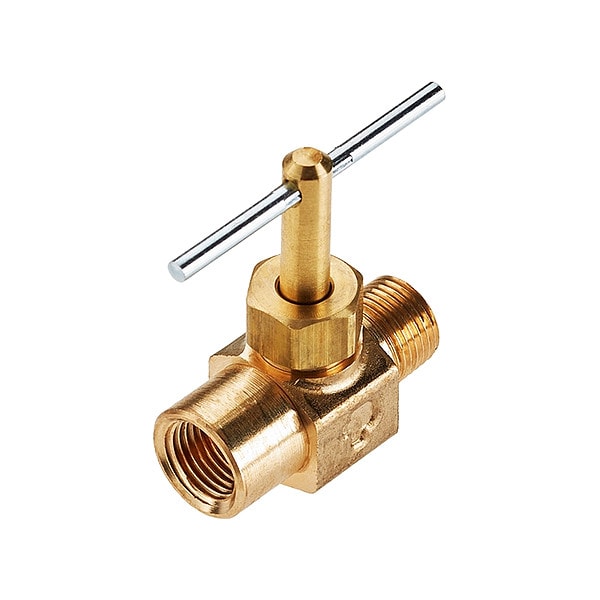

Needle Valve, 1/8In, FNPTxMNPT
- Mfr # NV108P-2
- Zoro # G3965599
product price:Â
$
15.19
/ea
Key Features
Pipe Size
1/8"
Connection
FNPT x MNPT
Body Material
Brass
Stem Type
Brass
Handle Material
Zinc Plated Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- NV108P-2
- Zoro #
- G3965599
- UPC #
- -
- Country of Origin
- United States
- Connection
- FNPT x MNPT
- Body Material
- Brass
- Item
- Needle Valve
- Stem Type
- Brass
- Handle Material
- Zinc Plated Steel
- Temp. Rating
- -45 Degrees to 250 Degrees F
- Fitting Style
- Straight
- Standards
- ISO 14001, ISO 9001, RoHS
- Seal Material
- Neoprene
- Connection Gender - Side 1
- Female
- Connection Type - Side 2
- IPS
- Bonnet Style
- Screw-In
- Connection Type - Side 1
- IPS
- Handle Type
- Tee
- For Media
- Water
- Maximum Pressure - Operating
- 150 psi
- Valve Body Style
- Inline
- Operating Temperature - Maximum
- 250 Degrees F
- Operating Temperature - Minimum
- -45 Degrees F
- Stem Material
- Brass
- Connection Gender - Side 2
- Male
- Valve Series
- NV
Dimensions
- Pipe Size
- 1/8"
- Length
- 1-23/64"
- Max. Height
- 1-1/2"
- Maximum Height
- 1 3/8 in
- Nominal Valve Size
- 1/8 in
- Connection Size - Side 2
- 1/8 in
- Overall Length
- 1.24 in
- Connection Size - Side 1
- 1/8 in
- Handle Length
- 1.5 in
- Wire Rope Length
- 1.24 in
Description
Needle Valve, Straight, Body Material Brass, Pipe Size 1/8 in, FNPT x MNPT Connection, Stem Type Brass, Seal Material Neoprene, Handle Material Zinc-Plated Steel, Temp. Rating -45 Degrees to 250 Degrees F, Max. Height 1 1/2 in, Length 1 23/64 in, Standards ISO 14001, ISO 9001, RoHS
