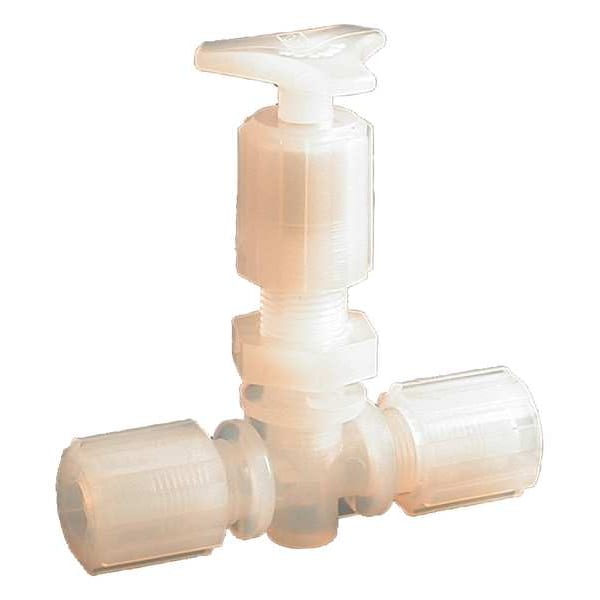

Needle Valve, Straight, 1/4 In, Compression
Mfr # MV-13-120
Zoro # G1533332
product price:Â
$
326.99
/ea
Free Shipping & Returns
Key Features
Pipe Size
1/4"
Tube Size
1/4"
Connection
Compression
Body Material
Wetted: PFA, PTFE; Non-Wetted: PFA, ETFE, PVDF
Max. Pressure
100 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MV-13-120
- Zoro #
- G1533332
- UPC #
- -
- Country of Origin
- United States
- Connection
- Compression
- Body Material
- Wetted: PFA, PTFE; Non-Wetted: PFA, ETFE, PVDF
- Max. Pressure
- 100 psi
- Max. Flow
- 3.60 gpm
- Item
- Needle Valve
- Temp. Rating
- Ambient: 0 Degrees to 212 Degrees F; Fluid: 0 Degrees to 266 Degrees F
- Fitting Style
- Straight
- Seal Material
- PFA
- Handle Material
- PFA
- Standards
- ANSI, ISA S75.02
- Stem Type
- PFA
- Maximum Pressure - Operating
- 100 psig
- Connection Type - Side 2
- Compression
- Operating Temperature - Maximum
- 150 Degrees F
- Stem Material
- PFA
- Operating Temperature - Minimum
- 0 Degrees F
- Connection Type - Side 1
- Compression
- Valve Series
- MV-13
Description
Needle Valve, Straight, Body Material PFA, Tube Size 1/4 in, Compression Connection, Stem Type PFA, Seal Material PFA, Handle Material PFA, Max. Pressure 100 psi, Temp. Rating Ambient: 0 Degrees to 212 Degrees F; Fluid: 0 Degrees to 266 Degrees F, Max. Flow 3.6 gpm, Max. Height 3 53/64 in, Length 3 5/16 in, Standards ANSI, ISA S75.02
