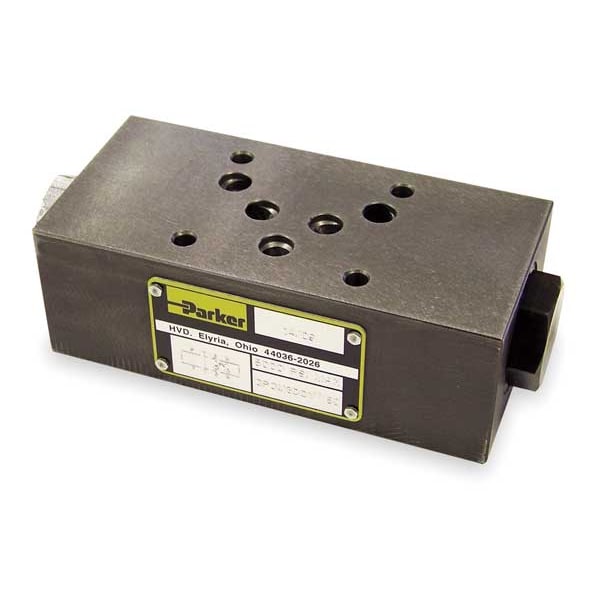

Pilot Operated Check Valve, 15.9 gpm

Mfr # CPOM3DDN
Zoro # G2474001

835.99

Free Shipping & Returns

Key Features

Width (In.)

2.75 in

GPM @ 3000 PSI

NFPA Size

D05

Length (In.)

6.5 in

Standards

ISO 4401, NFPA D05

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: CPOM3DDN
Zoro #: G2474001
UPC #: -
Country of Origin: United States

Dimensions

Width (In.): 2.75 in
NFPA Size: D05
Length (In.): 6.5 in
Height (In.): 1.97 in
Size: NFPA D05
Overall Length: 6.5 in
Overall Width: 2.75 in
Overall Height: 1.97 in
Wire Rope Length: 6.5 in

Details

GPM @ 3000 PSI: 20
Standards: ISO 4401, NFPA D05
Valve Type - Hydraulic Valves: Hydraulic Pilot Operated Check Valve
Item: Pilot Operated Check Valve
Max. Pressure - Hydraulic Valves: 5,000 psi
For Use With: D05 Valves
Max. Flow - Hydraulic Valves: 20 gpm
Type: A and B Port
Series: CPOM
Seal Type: Nitrile O-Ring
Operation Type - Hydraulic Valves: A and B Port
Max. Pressure (PSI): 5000
Seal Material: NBR
Valve Type: Pilot
Circuit Section: Pilot
Operating Temperature - Maximum: 140 Degrees F
Valve Control: Throttle Check
Includes Seals: Seals Included
Operating Temperature - Minimum: -4 Degrees F
Body Material: Cast Iron
Flow Rate - Maximum: 26.4 gpm
Pressure - Maximum: 5,075 psi

Description

Pilot Operated Check Valve, Flow Rate - Maximum 26.4 gpm, NFPA Size D05, Number of Positions -, Pressure - Maximum 5,075 psi, Valve Control Throttle Check, Valve Type Pilot, Series CPOM, Overall Height 1.97 in, Standards ISO 4401, NFPA D05, Overall Length 6.5 in, Overall Width 2.75 in, Seal Material NBR, Operating Temperature - Maximum 140 Degrees F
