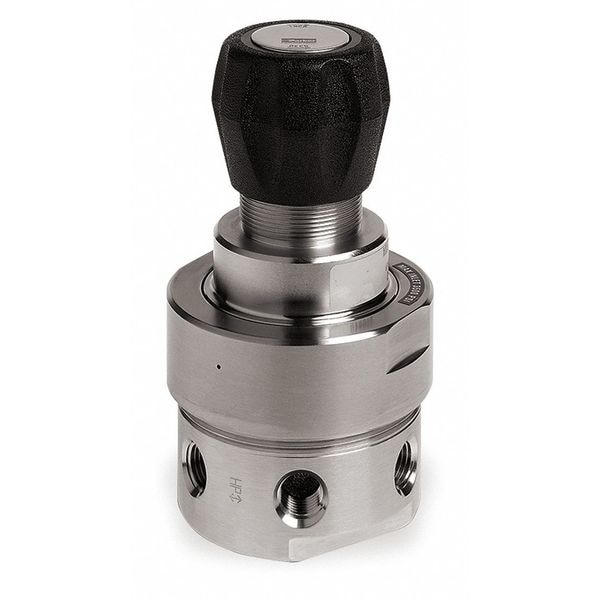

Pressure Regulator, Gas, 5-15/64" H

  • Mfr # IR5003SK4PXX4B

  • Zoro # G5158288


product price: $1,845.99
/ea
Free Shipping & Returns

Key Features

Series
IR5003
Body Material
Stainless Steel
Inlet Size
1/4 in
Outlet Size
1/4 in
Length
2 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IR5003SK4PXX4B
Zoro #
G5158288
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Length
2 3/4 in
Height
5 1/4 in
Gauge Port Size
1/4 in
Pipe Size
1/4 in
Outlet Connection Size
1/4 in
Overall Height
5 1/4 in
Overall Width
2 3/4 in
Inlet Connection Size
1/4 in

Details

Item
Pressure Regulator
Series
IR5003
Body Material
Stainless Steel
Compliance
ISO 9001
Standards
CRN
Pressure Adjustment Range
3 to 100 psi
Application
Gas
Connection Type
FNPT
Max. Pressure
3,500 psi
Max. Temp.
150 Degrees F
Seal Material
PCTFE
Operating Pressure - Maximum
3,500 psi
For Media
Gas
Operating Temperature - Maximum
150 Degrees F
Pilot Adjustment - Minimum
17.7 psi
Pilot Adjustment - Maximum
114.7 psi
Outlet Connection Type
NPT
Inlet Connection Type
NPT

Description

Pressure Regulator, Series IR5003, Body Material Stainless Steel, Inlet Size 1/4 in, Outlet Size 1/4 in, Length 2 3/4 in, Height 5 1/4 in, Application Gas, Connection Type NPT, Pressure Adjustment Range 3 to 100 psi, Gauge Port Size 1/4 in, Seal Material PCTFE, Max. Temp. 150 Degrees F, Pipe Size 1/4 in, Max. Pressure 3,500 psi, Standards CRN, Compliance ISO 9001
