This item is Discontinued.

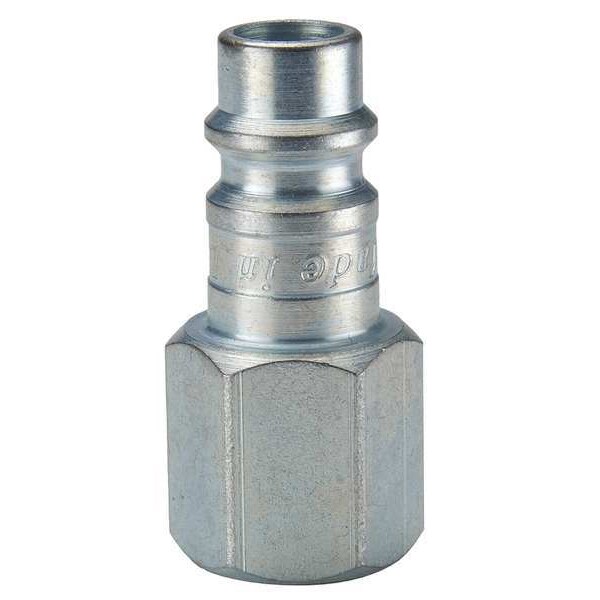

Parker Quick Connect, Plug, 1/4" Body, 1/4"-18 RF-254-4FP

Quick Connect, Plug, 1/4" Body, 1/4"-18 (Discontinued)

  • Mfr # RF-254-4FP
  • Zoro # G404390476
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RF-254-4FP
Zoro #
G404390476
UPC #
N
Country of Origin
United States

Dimensions

Hose Fitting Size
1/4 in
Coupling Size
1/4 in
Thread Size
1/4" -18
Overall Length
1 7/16 in
Body Size - Quick Connect Air Couplings
1/4 in
Quick Connect Air Coupling Pipe Size
1/4"
Pipe Size - Quick Connect Air Couplings
1/4"
Max. Outside Dia.
3/4 in
Quick Connect Air Coupling Body Size
1/4"

Details

Item
Quick Connect Hose Coupling
Interchange Type
Tru-Flate-Automotive
Material
Steel
Coupling Component
Plug
Hose Fitting Gender
Female
Connection Type
NPTF
Max. Flow Rate
707.92 lpm
Coupling Locking Type
Push-to-Connect
Includes Valve
No
Temp. Range
-40 Degrees to 250 Degrees F
Quick Connect Air Coupling Hose Connection
(F)NPT
Quick Connect Air Coupling Interchange Type
Tru-Flate-Automotive
Material - Quick Connect Air Couplings
Steel
Interchange Type - Quick Connect Air Couplings
European Style High Flow
Quick Connect Air Coupling Material
Steel
Quick Connect Air Coupling Max. Pressure
300 psi
Max. Flow
25 cfm
Barbed
No
Max. Working Pressure @ 70 F
300 psi
Fitting Type
FNPT
Locking Type - Quick Connect Air Couplings
Push-to-Connect
Hose Connection - Quick Connect Air Couplings
(F)NPT
Application
Pneumatic
Max. Pressure - Quick Connect Air Couplings
300 psi
Finish
zinc plated
Quick Connect Air Coupling Product Grouping
Quick Coupler Plug
Quick Connect Air Coupling Locking Type
Push-to-Connect

Description

Quick Connect Hose Coupling, Tru-Flate-Automotive, Steel, Plug, Female, NPTF, Coupling Size 1/4 in
