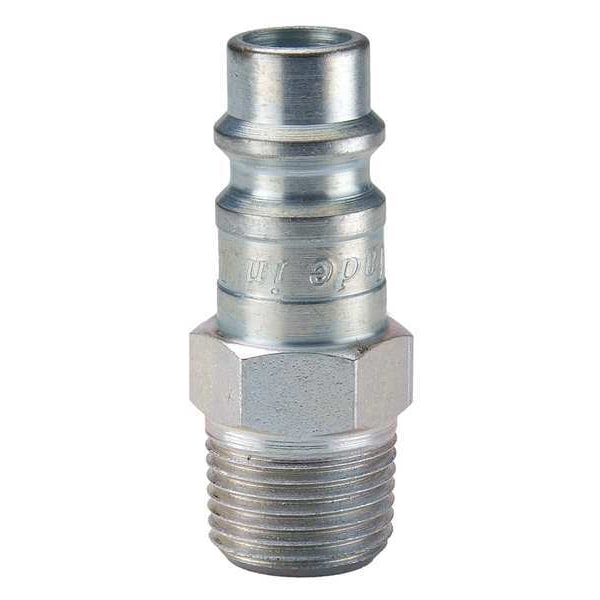

Parker Quick Connect, Plug, 1/4" Body, 1/4"-18 RF-254-4MP

Quick Connect, Plug, 1/4" Body, 1/4"-18 (Discontinued)

  • Mfr # RF-254-4MP
  • Zoro # G704390725
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RF-254-4MP
Zoro #
G704390725
UPC #
N
Country of Origin
United States

Dimensions

Quick Connect Air Coupling Body Size
1/4"
Quick Connect Air Coupling Pipe Size
1/4"
Body Size - Quick Connect Air Couplings
1/4 in
Hose Fitting Size
1/4 in
Pipe Size - Quick Connect Air Couplings
1/4"
Overall Length
1 5/8 in
Thread Size
1/4" -18
Coupling Size
1/4 in
Max. Outside Dia.
11/16 in

Details

Quick Connect Air Coupling Material
Steel
Quick Connect Air Coupling Interchange Type
Global Style Hi-Flow
Quick Connect Air Coupling Max. Pressure
300 psi
Quick Connect Air Coupling Product Grouping
Quick Coupler Plug
Finish
zinc plated
Temp. Range
-40 Degrees to 250 Degrees F
Application
Pneumatic
Quick Connect Air Coupling Locking Type
Push-to-Connect
Interchange Type - Quick Connect Air Couplings
Global Style Hi-Flow
Material
Steel
Fitting Type
MNPT
Max. Pressure - Quick Connect Air Couplings
300 psi
Connection Type
NPTF
Quick Connect Air Coupling Hose Connection
(M)NPT
Hose Fitting Gender
Male
Interchange Type
Global Style High Flow
Coupling Component
Plug
Includes Valve
No
Locking Type - Quick Connect Air Couplings
Push-to-Connect
Max. Flow Rate
707.92 lpm
Max. Working Pressure @ 70 F
300 psi
Hose Connection - Quick Connect Air Couplings
(M)NPT
Material - Quick Connect Air Couplings
Steel
Max. Flow
25 cfm
Coupling Locking Type
Push-to-Connect
Barbed
No
Item
Quick Connect Hose Coupling

Description

Quick Connect Hose Coupling, Global Style High Flow, Steel, Plug, Male, NPTF, Coupling Size 1/4 in
