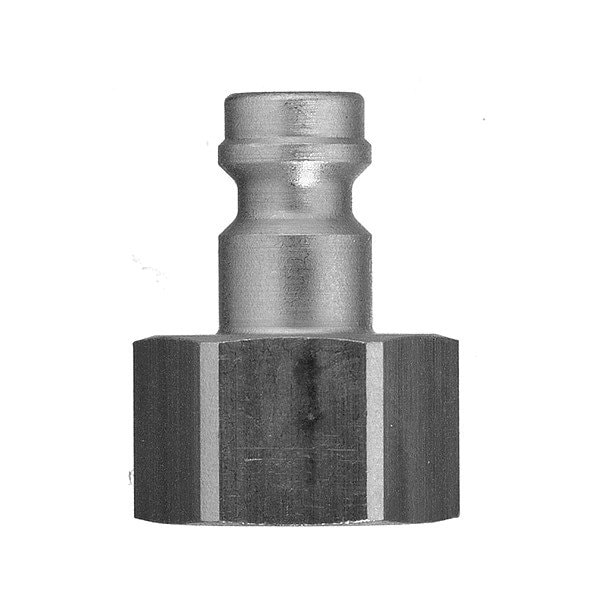

Quick Connect Socket, Brass, 1 5/16" L
Mfr # 21SFIN13MXN
Zoro # G710831847
product price:
$
5.99
/ea
Sold in multiples of 10 for $59.90
Key Features
Interchange Type
Industrial
Material
Brass
Coupling Component
Plug
Hose Fitting Gender
Female
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 21SFIN13MXN
- Zoro #
- G710831847
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Hose Fitting Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 1 5/16 in
- Body Size - Quick Connect Air Couplings
- 1/8 in
- Max. Outside Dia.
- 3/4 in
- Wire Rope Length
- 1 5/16 in
- Length
- 1 5/16 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Brass
- Coupling Component
- Plug
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Nickel-Plated
- Max. Flow Rate
- 12 scfm
- Coupling Locking Type
- Ball
- Seal Material
- Nitrile
- Includes Valve
- No
- Temp. Range
- -4 Degrees to 212 Degrees F
- Includes
- Locking Balls, Valve Spring
- Standards
- A-A-59439, ISO 6150-B, MIL-C-4109F
- Max. Working Pressure @ 70 F
- 250 psi
- For Use With
- Industrial Interchange
- Connection Thread Type
- NPT
Description
The PARKER - 21SFIN13MXN is a quick connect socket made from brass, designed as the female half of a quick-connect coupling. It features a push-to-connect action with a spring-loaded release sleeve and uses ball locking to accept and lock a matching plug using ball locking to form a connection intended for fluid transfer under the specified operating conditions. This quick connect socket has a 1/4 in hose fitting size with a 1/4"-18 NPTF thread size and is intended for pneumatic, hydraulic, and general fluid transfer when used with compatible couplings, hoses, and fluids. It is compatible with industrial interchange standards including A-A-59439; ISO 6150-B; MIL-C-4109F.
Key Features:
- Body Size: 1/8"
- Threaded Connection Type: 1/4"-18 NPTF
- Hose Fitting Gender: Female
- Coupling Locking Type: Ball
- Material: Brass with Nickel Plated finish
- Seal Material: Nitrile
- Maximum Flow Rate: 12 SCFM
- Rated maximum working pressure: 250 psi at 70°F
- Rated operating temperature range: -4°F to 212°F
- Overall Length: 1.31 in
- Maximum Outside Diameter: 0.75 in
- Includes Locking Balls and Valve Spring
- Standards: A-A-59439; ISO 6150-B; MIL-C-4109F
- For Use With: Industrial Interchange
- Interchange Type: Industrial
- Includes Valve: No
