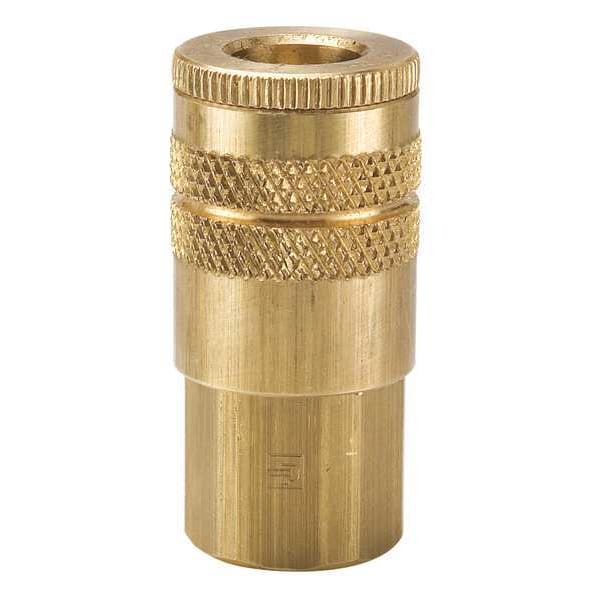

Quick Connect Hose Coupling, 1/4 in Body Size, 1/4 in Hose Fitting Size, Sleeve, Socket, B23
- Mfr # B23
- Zoro # G4873617
product price:
$
15.25
/ea
Key Features
Interchange Type
Industrial
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Female
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- B23
- Zoro #
- G4873617
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 1 13/16 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 15/16 in
- Wire Rope Length
- 1 13/16 in
- Length
- 1 13/16 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Brass
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Max. Flow Rate
- 707.92 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- Pneumatic
- Valve Type
- Tubular
- Barbed
- No
- Max. Working Pressure @ 70 F
- 300 psi
- Connection Thread Type
- NPT
Description
The PARKER - B23 is a brass quick connect hose coupling intended for connection in pneumatic systems. It features a 1/4 inch NPT female hose fitting and a 1/4 inch coupling size, meets the stated industrial interchange specifications (as applicable). This socket-type coupling includes a tubular valve and uses a sleeve locking mechanism to enable connection and disconnection without tools. The coupling is intended for use with compressed air lines and rated flow rate: 707.92 LPM (maximum) at rated maximum working pressure: 300 psi at 70°F, rated operating temperature range: -40°F to 250°F.
Key Features:
- Material: Brass
- Application: Pneumatic
- Coupling Component: Socket
- Coupling Locking Type: Sleeve
- Hose Fitting Gender: Female
- Connection Type: 1/4" NPT (female)
- Includes Valve: Yes; Valve Type: Tubular
- Seal Material: Nitrile
- Max. Flow Rate: 707.92 lpm
- Max. Working Pressure @ 70°F: 300 psi
- Max. Outside Diameter: 15/16 in
- Overall Length: 1.81 in
