Shop PARKER

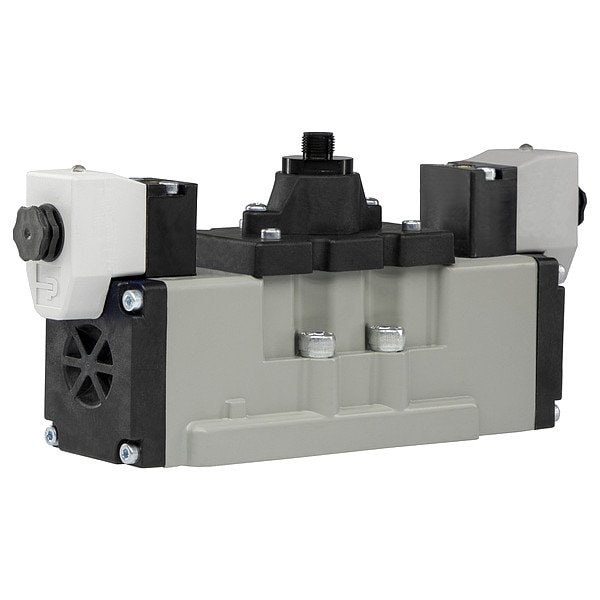

Solenoid Air Con Valve, Four-Way, 145 psi

  • Mfr # H35WXBG323000FD

  • Zoro # G910412112

product price:
$
583.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
ISO
Voltage
120V AC
Valve Actuator / Return
Solenoid / Solenoid
Pilot Pressure
50 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H35WXBG323000FD
Zoro #
G910412112
UPC #
-
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
ISO
Voltage
120V AC
Valve Actuator / Return
Solenoid / Solenoid
Pilot Pressure
50 psi
Power Consumption
4.5 W
Center Position
Closed
Body Material
Aluminum
Override
Non-Locking
Electrical Connections
Non Plug-In
Valve Ways and Positions
4-Way/3-Position
Seal Material
Nitrile
Operational Pressure Range
Vacuum to 145 psi
ISO Class
5599-1
Number of Positions
Three-Position
Number of Ways
Four-Way
Ambient Temp. Range
5 Degrees to 120 Degrees F
Standards
CSA Certified, cUS
Shifting Technology
Solenoid
Coefficient of Volume (Cv)
5
Return Action
Solenoid Return
Pilot Type
Internal Pilot
For Media
Air
Operating Pressure - Minimum
50 psi
Valve Type
Spool
Spool Material
Aluminum
Operating Pressure - Maximum
145 psi
Operating Temperature - Minimum
5 Degrees F
Operating Temperature - Maximum
120 Degrees F
Actuator Type
Double Solenoid
Vacuum Rating
Vacuum Operable
Product Type
Solenoid Air Control Valve
Includes Solenoid Coil
Solenoid Coil Included

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Voltage 120V AC, Center Position Closed, Valve Actuator / Return Solenoid / Solenoid, ISO Class 5599-1, Operational Pressure Range Vacuum to 145 psi, Body Style Base-Mounted, Pilot Port Size 3/4 in, Pilot Pressure 50 psi, Non Plug-In Electrical Connections, Shifting Technology Solenoid, Power Consumption 4.5 W, Ambient Temp. Range 5 Degrees to 120 Degrees F, Override Non-Locking, Overall Height 2 1/2 in
