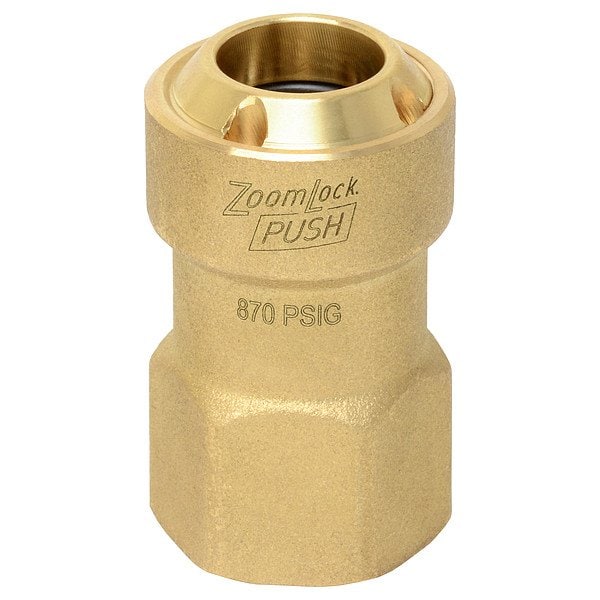

Strt, Brass, Push-Fit1/4in, UNF7/16in
Mfr # PZKP-F4-HNBR 1/4" SAE
Zoro # G810854432
product price:Â
$
15.99
/ea
Key Features
Specific Fitting Shape
Flare Adapter
Overall Length
1 17/32 in
System of Measurement
Imperial
Color
Gold
Standards
ANSI 15, ANSI 31.5, ASHRAE-15, ASME B31.5, ASTM B280, UL SA7511, UNI EN 12735
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PZKP-F4-HNBR 1/4" SAE
- Zoro #
- G810854432
- UPC #
- -
- Country of Origin
- Korea, Republic of
- Item
- Push-Fit Adapter Fitting
- Specific Fitting Shape
- Flare Adapter
- System of Measurement
- Imperial
- Color
- Gold
- Standards
- ANSI 15, ANSI 31.5, ASHRAE-15, ASME B31.5, ASTM B280, UL SA7511, UNI EN 12735
- Series
- ZoomLock
- Fitting Material
- Brass
- Maximum Operating Temperature
- 250 Degrees F
- Fitting Side A Connection Type
- Push-Fit
- Compatible Tube Material
- Copper
- Fitting Side B Connection Type
- UNF
- Resistance Properties
- Vibration-Resistant
- Maximum Operating Pressure
- 870 psi
- Compatible Copper Tube Type
- Type ACR, Type K, Type L, Type M
- Fitting Shape
- Straight
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Side 2 Connection Type
- UNF
- For Media Type
- Non-Potable Water
- Operating Pressure - Maximum
- 870 psi
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Connector Type
- Adapter
- Operating Temperature - Maximum
- 250 Degrees F
Description
Push-Fit Adapter Fitting, Fitting Side A Connection Type Push-Fit, Fitting Side B Connection Type UNF, Fitting Side A Pipe Size Not Applicable, Fitting Side B Pipe Size 7/16 in, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter Not Applicable, Fitting Material Brass, Fitting Thread Size 7/16 In.-20, Color Gold, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 870 psi, Maximum Operating Temperature 250 Degrees F
