Shop PARKER

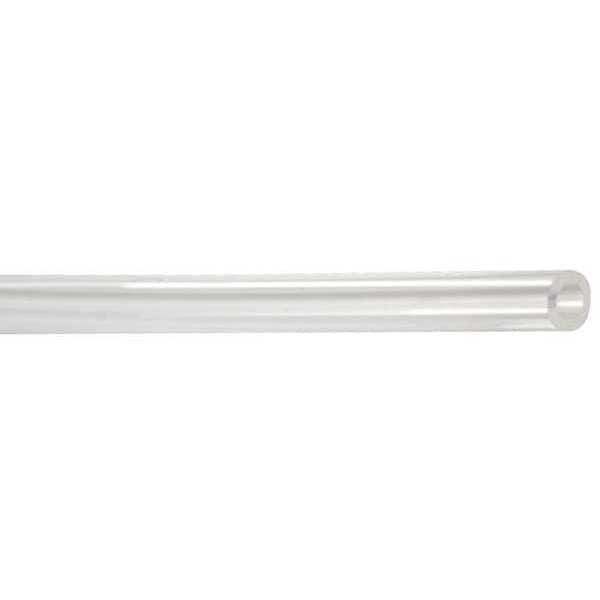

Tubing, 1/8" Inside Dia., 50 ft. Tube L

  • Mfr # 103-0188031-NT-50

  • Zoro # G7826211

product price:
$
95.39
/ea

Key Features

Tube Material
Fluorinated Ethylene Propylene
Tube Hardness
Shore D: 55
Inside Dia.
1/8 in
Outside Dia.
3/16 in
Wall Thickness
0.031 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
103-0188031-NT-50
Zoro #
G7826211
UPC #
-
Country of Origin
United States

Dimensions

Inside Dia.
1/8 in
Outside Dia.
3/16 in
Wall Thickness
0.031 in
Tube Length
50 ft
Tube Bend Radius
3/4 in
Inside Diameter
1/8 in
Outside Diameter
3/16 in
Bend Radius
3/4 in
Overall Length
50 ft
Wire Rope Length
50 ft
Length
50 ft

Details

Tube Material
Fluorinated Ethylene Propylene
Tube Hardness
Shore D: 55
Max. Pressure
290 psi @ 73 Degrees F
Tube Color
Translucent
Temp. Range
-100 Degrees F to 400 Degrees F
Item
Tubing
Standards
21 CFR 177.1550, ASTM D2116, UL 94 V-0 Compliant, USP Class VI
Burst Pressure
980 psi
Application
Beverage, Chemical, Food, Water
Material
FEP
Color
Beige
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant
Chemical Compatibility
Acetone, Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride
Minimum Operating Temperature
-100 Degrees F
Maximum Vacuum Pressure
28 in Hg
Maximum Operating Temperature
400 Degrees F
Autoclavable
Yes
Jacket Material
No Jacket
Maximum Operating Pressure
245 psi @ 73 Degrees F
Reinforcement
Not Reinforced
Vacuum Rated
Vacuum Rated
Petroleum Product Compatibility
Kerosene, Mineral Oil
Flexibility
Flexible
Features
Chemically Inert, Low Coefficient of Friction, Non-Wetting, Self-Extinguishing, Weldable
Fitting Compatibility
Compression, Push-to-Connect
Stripe Color
No Stripe
Clarity
Semi-Clear
Tube Form
Straight
Peristaltic Pump Compatible
No
Hardness
Shore D 55
System of Measurement
Inch
Beverage, Food, and Water Compatibility
Beer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils and Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar
Jacket Color
No Jacket
Weight per Foot
0.014 lb/ft
Food and Beverage Compatibility
Beer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils and Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar

Description

Tubing, Application Beverage, Chemical, Food, Water, Color Beige, Hardness Shore D 55, Inside Diameter 1/8 in, Jacket Color No Jacket, Jacket Material No Jacket, Material FEP, Material Trade Name Not Applicable, Material Trade Number Not Applicable, Maximum Operating Pressure 245 psi @ 73 Degrees F, Maximum Operating Temperature 400 Degrees F, Maximum Vacuum Pressure 28 in Hg, Outside Diameter 3/16 in, Overall Length 50 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable
