Shop PASS & SEYMOUR

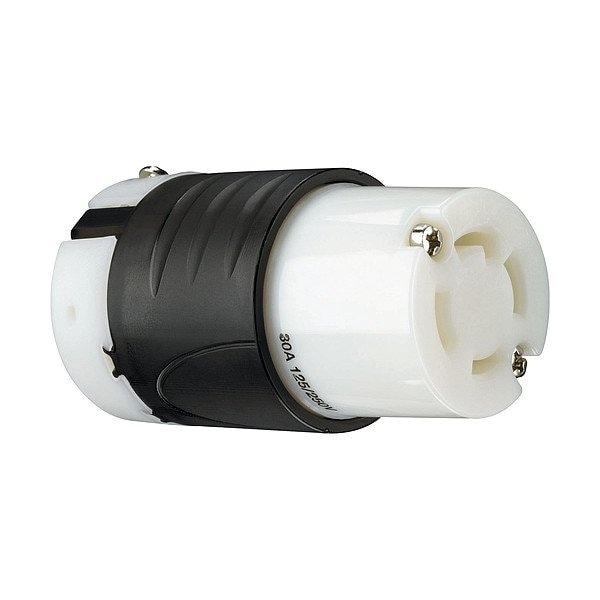

Locking Connector, L14-30R, 30 A, 125/250V AC, 2 Pole, Screw Terminals, Black, White

  • Mfr # L1430C

  • Zoro # G316332694

product price:  $125.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
L1430C
Zoro #
G316332694
UPC #
785007143010
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.225 in
Overall Length
3.33 in
Outside Diameter
2.2 in
Minimum Wire Size
18 AWG
Maximum Wire Size
8 AWG

Details

Item
Locking Connector
NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black, White
Standards
CSA Certified, CSA-C22.2 No. 42, Federal Specification WC596, UL 498, UL Listed, UL94 V2
Resistance Properties
Corrosion Resistant, Impact Resistant
Grade
Federal Specification
IP Rating
IP20
Features
Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Midget Locking
No
Compatible with Series
Turnlok
For Environment
Industrial
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Market
Industrial
NEMA Enclosure Rating
Not Rated
Horsepower Rating
2 hp
Series
TURNLOK(R)
Power and Ground Indicating Light
No
Shrouded
No
Connection Orientation
Straight
Phase
Single

Description

Locking Connector, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L14-30R, Number of Poles 2, Number of Wires 3, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Contact Material Brass, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.225 in, Grounding Grounded, Market Industrial, Midget Locking No
