Shop PASS & SEYMOUR

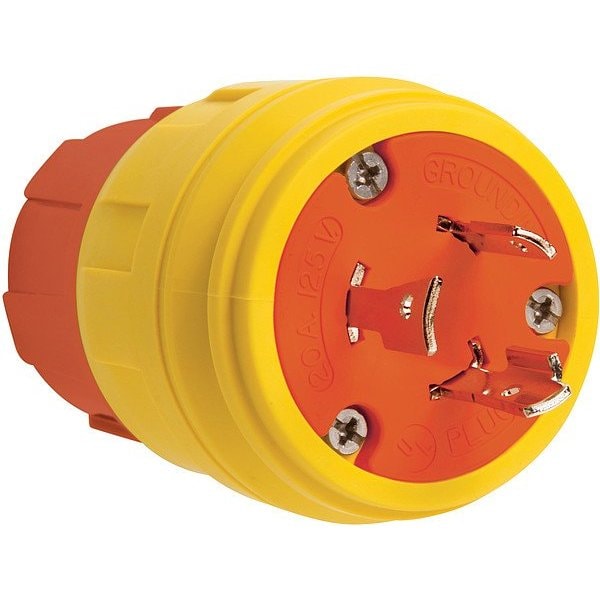

Locking Plug, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # 26W47AM

  • Zoro # G814760456

product price:
$
55.79
/ea

Key Features

NEMA Plug Configuration
L5-20P
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
26W47AM
Zoro #
G814760456
UPC #
785007057072
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Outside Diameter
1.85 in
Body Length
2.62 in
Face Diameter
1.85 in
Maximum Wire Size
10 AWG
Length
2.62 in
For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.475 in
Overall Length
2.62 in
Wire Rope Length
2.62 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Housing Color
Yellow
Standards
CSA Certified, JIS Z2801, NSF Certified, RoHS Compliant, UL Listed
Resistance Properties
Antimicrobial, Moisture Resistant, UV/Sunlight Resistant, Watertight
Grade
General Use
IP Rating
IP65, IP66, IP67
Minimum Operating Temperature
-40 Degrees F
For Environment
Food and Beverage, Sanitary, Clean Room, Institutional
Midget Locking
No
Blade Material
Nickel-Plated Brass
Features
Anti-Microbial Additive Resistant to Scuffing and Cleaning, Anti-Microbial Additives Embedded in Polymer and Inhibits Growth of Bacteria, Molds, Mildews and Fungi, Keyed Body and Cover for Alignment, Patent Pending, Resistant to High Pressure Hose-Down ApplicationsTongue and Groove Environmental Sealing
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
Housing Material
Thermoplastic Elastomer
Series
TURNLOK(R)
UL 94 Flammability Rating
V-0
Power and Ground Indicating Light
No

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration L5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Antimicrobial, Moisture Resistant, UV/Sunlight Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.85 in, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.475 in
