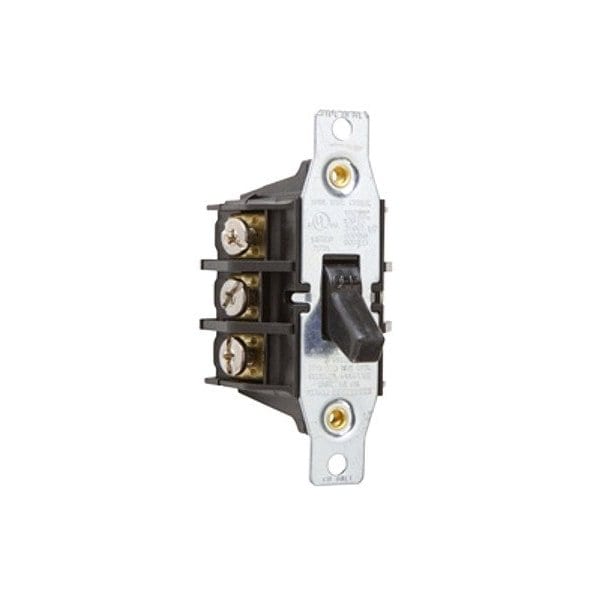

Manual Motor Switch, 30 A, 3 P, 3 Phase, Toggle, NEMA 1
Mfr # 7803MD
Zoro # G316332731
product price:Â $105.99
/ea
Free Shipping & Returns
Key Features
Number of Gangs
1
Current AC
30 A
Number of Poles
3
Phase
3
Operator
Toggle
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 7803MD
- Zoro #
- G316332731
- UPC #
- 785007267686
- Country of Origin
- Mexico
Dimensions
- Mounting Hole Distance - Height
- 3.28 in
- Overall Height
- 3.67 in
- Overall Width
- 1.83 in
- Overall Depth
- 1.74 in
Details
- Item
- Manual Motor Switch
- Number of Gangs
- 1
- Current AC
- 30 A
- Number of Poles
- 3
- Phase
- 3
- Operator
- Toggle
- Starter Style
- NEMA
- Terminal Connection Type
- Screw
- Maximum Voltage Rating
- 600V
- Mounting Style
- Surface
- NEMA Enclosure Rating
- NEMA 1
- Standards
- File Number E31169, File Number LR17949, Industrial Control Equipment CSA Certified, NEMA WD-1 and WD-6, Standard CSA-C22.23 No. 14, Standard UL 508, UL Listed
- Horsepower @ Three Phase - 600V AC
- 20 hp
- Maximum Operating Temperature
- 75 Degrees C
- Horsepower @ Three Phase - 240V AC
- 7 1/2 hp
- Contact Material
- Silver Alloy
- Horsepower @ Three Phase - 480V AC
- 10 hp
- Minimum Operating Temperature
- -40 Degrees F
Description
Motor Switch, Current AC 30 A, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Horsepower @ Three Phase - 600V AC 20 hp, Number of Poles 3, Operator Toggle Switch, Phase Three, Starter Style NEMA, Terminal Connection Type Screw Terminals, Maximum Voltage Rating 600V, Mounting Style Surface, NEMA Enclosure Rating 1, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C
