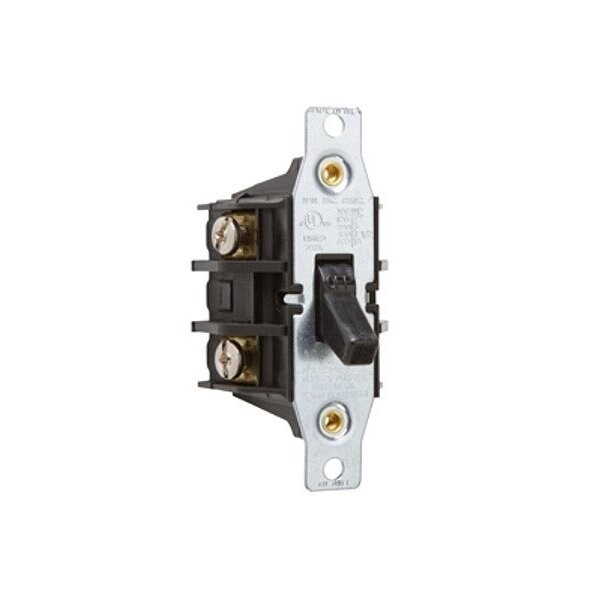

Motor Switch, Silver Alloy
Mfr # 7802MD
Zoro # G816332743
product price:Â
$
49.55
/ea
Key Features
Number of Gangs
1
Current AC
30 A
Number of Poles
2
Phase
Single
Operator
Toggle Switch
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 7802MD
- Zoro #
- G816332743
- UPC #
- 785007267655
- Country of Origin
- Mexico
Dimensions
- Mounting Hole Distance - Height
- 3.28 in
- Overall Width
- 1.83 in
- Overall Height
- 3.67 in
- Overall Depth
- 1.74 in
Details
- Item
- Motor Switch
- Number of Gangs
- 1
- Current AC
- 30 A
- Number of Poles
- 2
- Phase
- Single
- Operator
- Toggle Switch
- Starter Style
- NEMA
- Terminal Connection Type
- Screw Terminals
- Maximum Voltage Rating
- 600V
- Mounting Style
- Surface
- NEMA Enclosure Rating
- 1
- Standards
- File Number E31169, File Number LR17949, Industrial Control Equipment CSA Certified, NEMA WD-1 and WD-6, Standard CSA-C22.23 No. 14, Standard UL 508, UL Listed
- Horsepower @ Single Phase - 240V AC
- 3 hp
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 75 Degrees C
- Contact Material
- Silver Alloy
- Horsepower @ Single Phase - 120V AC
- 2 hp
Description
Motor Switch, Current AC 30 A, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 3 hp, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals, Maximum Voltage Rating 600V, Mounting Style Surface, NEMA Enclosure Rating 1, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees F
