  11. Pin And Sleeve Plugs, 30 A, 277/480V AC, Three Phase, 4 Pole, Style 2 Grounding, Red
No Product Image Available

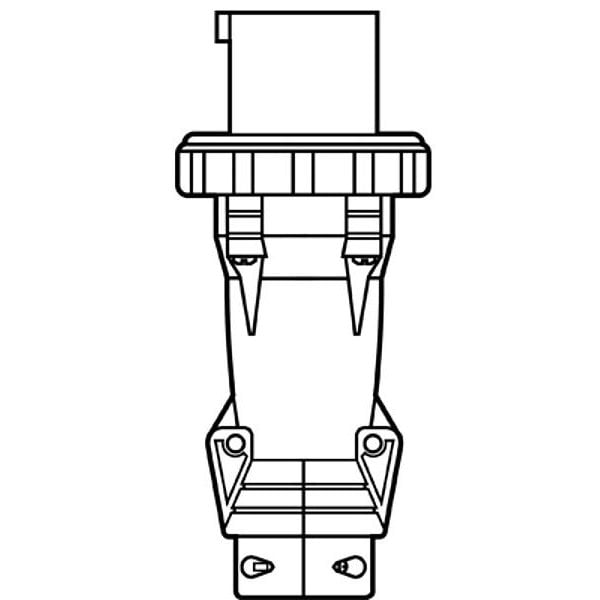

Pin And Sleeve Plugs, 30 A, 277/480V AC, Three Phase, 4 Pole, Style 2 Grounding, Red

  • Mfr # PS530P7W

  • Zoro # G816332736

product price: $398.99
/ea
Item requires special delivery charges. A $300.00 per item surcharge will be applied.

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PS530P7W
Zoro #
G816332736
UPC #
785007621457
Country of Origin
United States

Dimensions

Overall Length
4.5 in
Outside Diameter
4.3 in

Details

Item
Pin And Sleeve Plugs
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Red
Standards
CSA, CSA 22.2 No. 182.2, IEC 309-2, UL 1682, UL Classified to IEC 309-1 and IEC 309-2
Resistance Properties
Corrosion Resistant
Grounding Style
Style 2
Features
Provides Watertight Seal when Connected
Housing Material
Nylon
Grounding
Grounded
Minimum Operating Temperature
-50 Degrees C
Pin Material
Brass
Number of Pins
5
UL 94 Flammability Rating
HB
Market
Industrial
For Environment
Food and Beverage
Horsepower Rating
15 hp
Maximum Operating Temperature
80 Degrees C

Description

Pin And Sleeve Plugs, Current Rating 30 A, Horsepower Rating 15 hp, Housing Color Red, IP Rating IP67, Number of Poles 4, Number of Wires 5, Phase Three, Voltage Rating 277/480V AC, Wire Connection Type Screw Terminals, Connection Orientation Straight, Grounding Grounded, Grounding Style Style 2, Housing Material Nylon, Outside Diameter 4.3 in, Resistance Properties Corrosion Resistant, Standards CSA, CSA 22.2 No. 182.2, IEC 309-2, UL 1682, UL Classified to IEC 309-1 and IEC 309-2
