  6. Wall Switch, 2 hp, Toggle, 15 A, White
No Product Image Available

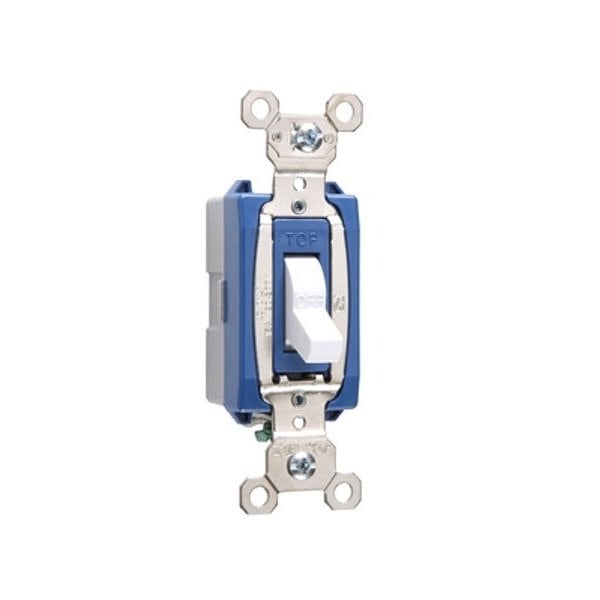

Wall Switch, 2 hp, Toggle, 15 A, White

  • Mfr # PS15AC1w

  • Zoro # G516332784

product price:  $19.69
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Color
White
Wiring Method
Back, Side
Standards
CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PS15AC1w
Zoro #
G516332784
UPC #
785007196535
Country of Origin
Mexico

Dimensions

Switch Height
2.4 in
Minimum Wire Size
14 AWG
Overall Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Switch Depth
1.1 in
Maximum Wire Size
10 AWG

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Color
White
Wiring Method
Back, Side
Standards
CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
Features
Auto-Ground Clip Assures Positive Ground, Cam Controls Fast "Make" and Positive "Break" to Minimize Arcing, Grounding Terminal is Standard, Heavy-Duty Bumper Pads for Quiet Operation, Shallow Design for Ease of Installation
For Environment
Industrial
Maximum Operating Temperature
115 Degrees C
Horsepower Rating
2 hp
Market
Industrial
Current Rating
15 A
Wire Connection Type
Screw Terminals
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees C
Housing Material
Glass-Reinforced Nylon
Resistance Properties
Chemical Resistant, Heat Resistant, Impact Resistant
Switch Material
Thermoplastic Polycarbonate
Voltage Rating
120/277V AC
Number of Switches
1
Strap Material
Nickel-Plated Steel

Description

Wall Switch, Color White, Current Rating 15 A, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Number of Switches 1, Resistance Properties Chemical Resistant, Heat Resistant, Impact Resistant, Standards CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
