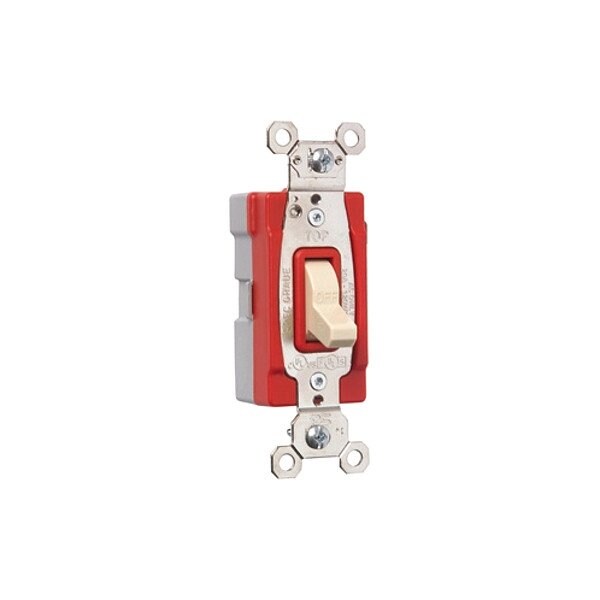

Wall Switch, 2 hp, Toggle, 20 A, Ivory
Mfr # PT20AC1I
Zoro # G616332684
product price:Â
$
11.99
/ea
Key Features
Switch Type
Single Pole
Switch Style
Toggle
Color
Ivory
Wiring Method
Back
Standards
CSA-C22.2 No. 111, cULus Listed File Number LR17446, Federal Specification WS896, NEMA WD-1 and WD-6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PT20AC1I
- Zoro #
- G616332684
- UPC #
- 785007108514
- Country of Origin
- Mexico
Dimensions
- Switch Height
- 2.4 in
- Overall Width
- 1.3 in
- Minimum Wire Size
- 14 AWG
- Switch Depth
- 1.1 in
- Mount Hole Center-to-Center Height
- 3.3 in
- Maximum Wire Size
- 10 AWG
Description
Wall Switch, Color Ivory, Current Rating 20 A, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Number of Switches 1, Resistance Properties Chemical Resistant, Heat Resistant, Impact Resistant, Standards CSA-C22.2 No. 111, cULus Listed File Number LR17446, Federal Specification WS896, NEMA WD-1 and WD-6, Strap Material Nickel-Plated Brass
