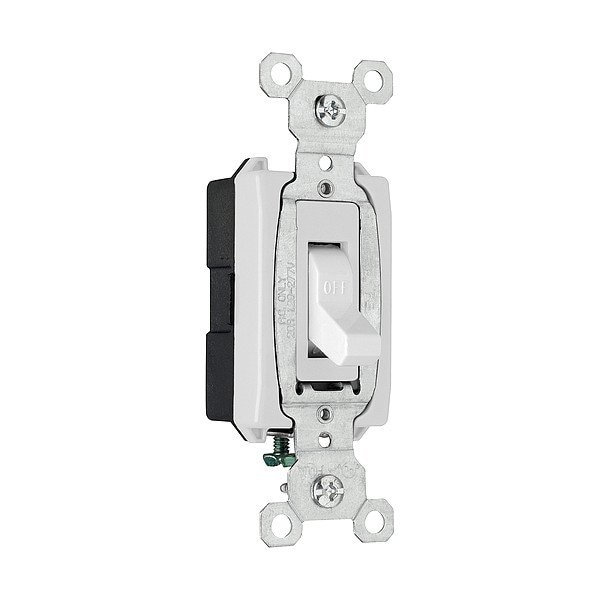

Wall Switch, 2 hp, Toggle, 20 A, White
Mfr # CSB20AC1W
Zoro # G016332727
product price:Â
$
10.19
/ea
Key Features
Switch Type
Single Pole
Switch Style
Toggle
Color
White
Wiring Method
Back, Side
Features
Single Piece Plated Steel Mounting Strap
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CSB20AC1W
- Zoro #
- G016332727
- UPC #
- 785007126099
- Country of Origin
- Mexico
- Item
- Wall Switch
- Switch Type
- Single Pole
- Switch Style
- Toggle
- Color
- White
- Wiring Method
- Back, Side
- Features
- Single Piece Plated Steel Mounting Strap
- Standards
- CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
- Market
- Commercial
- Housing Material
- Glass-Reinforced Nylon
- Horsepower Rating
- 2 hp
- Grounding
- Grounded
- Strap Material
- Nickel-Plated Steel
- Number of Switches
- 1
- Wire Connection Type
- Screw Terminals
- Maximum Operating Temperature
- 115 Degrees C
- Voltage Rating
- 120/277V AC
- Minimum Operating Temperature
- -40 Degrees C
- Resistance Properties
- Corrosion Resistant
- Current Rating
- 20 A
- Switch Material
- Thermoplastic Polycarbonate
- Illuminated
- No
- Contact Material
- Silver Alloy
- Nightlight
- No
- Switch Function
- Maintained
Description
Wall Switch, Color White, Current Rating 20 A, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Number of Switches 1, Resistance Properties Corrosion Resistant, Standards CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
