Shop PASS & SEYMOUR

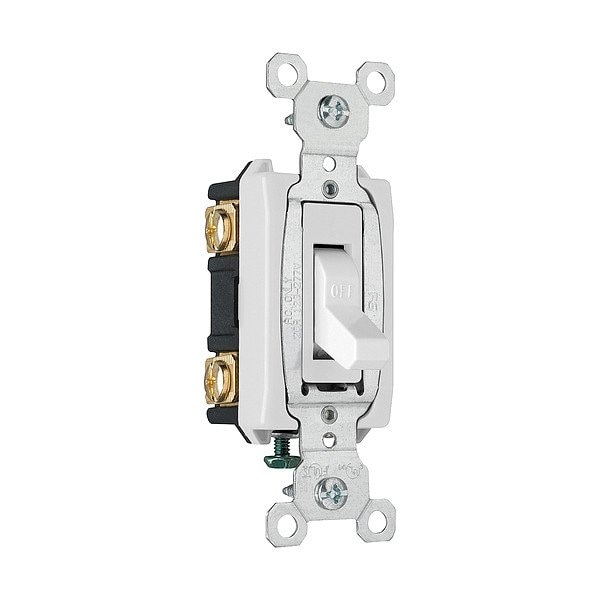

Wall Switch, 2 hp, Toggle, 20 A, White

  • Mfr # CSB20AC2W

  • Zoro # G716332690

product price:  $20.49
/ea

Key Features

Switch Type
Double Pole
Switch Style
Toggle
Color
White
Wiring Method
Back/Side
Standards
CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CSB20AC2W
Zoro #
G716332690
UPC #
785007126198
Country of Origin
Mexico

Dimensions

Switch Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Overall Width
1.3 in
Minimum Wire Size
14 AWG
Switch Height
2.4 in
Maximum Wire Size
10 AWG

Details

Item
Wall Switch
Switch Type
Double Pole
Switch Style
Toggle
Color
White
Wiring Method
Back/Side
Standards
CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
Features
Single Piece Plated Steel Mounting Strap
Maximum Operating Temperature
115 Degrees C
Grounding
Grounded
Current Rating
20 A
Horsepower Rating
2 hp
Switch Material
Thermoplastic Polycarbonate
Wire Connection Type
Screw Terminals
Market
Commercial
Voltage Rating
120/277V AC
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Corrosion Resistant
Housing Material
Glass-Reinforced Nylon
Strap Material
Nickel-Plated Steel
Number of Switches
1
Contact Material
Silver Alloy
Illuminated
No
Switch Function
Maintained
Nightlight
No

Description

Wall Switch, Color White, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Double Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Corrosion Resistant
